Description:
First Glance
2025 Year Model
4 Horse
Bighorn Model with Lakota Conversion #BH8417TCE2S
Side Load with Full Rear Tack
17’ Short wall with Double Slides
WINDSWEPT HICKORY INTERIOR
Mangers, Integrated Hay Pod, and Onan Generator on roof
5500 Onan gasoline generator, 50 amp service
Trades entertained, financing provided WAC, delivery available
Horse Trailer Specs
2025 year model
Manufacturer: Lakota
MODEL: BI8417TCE2S

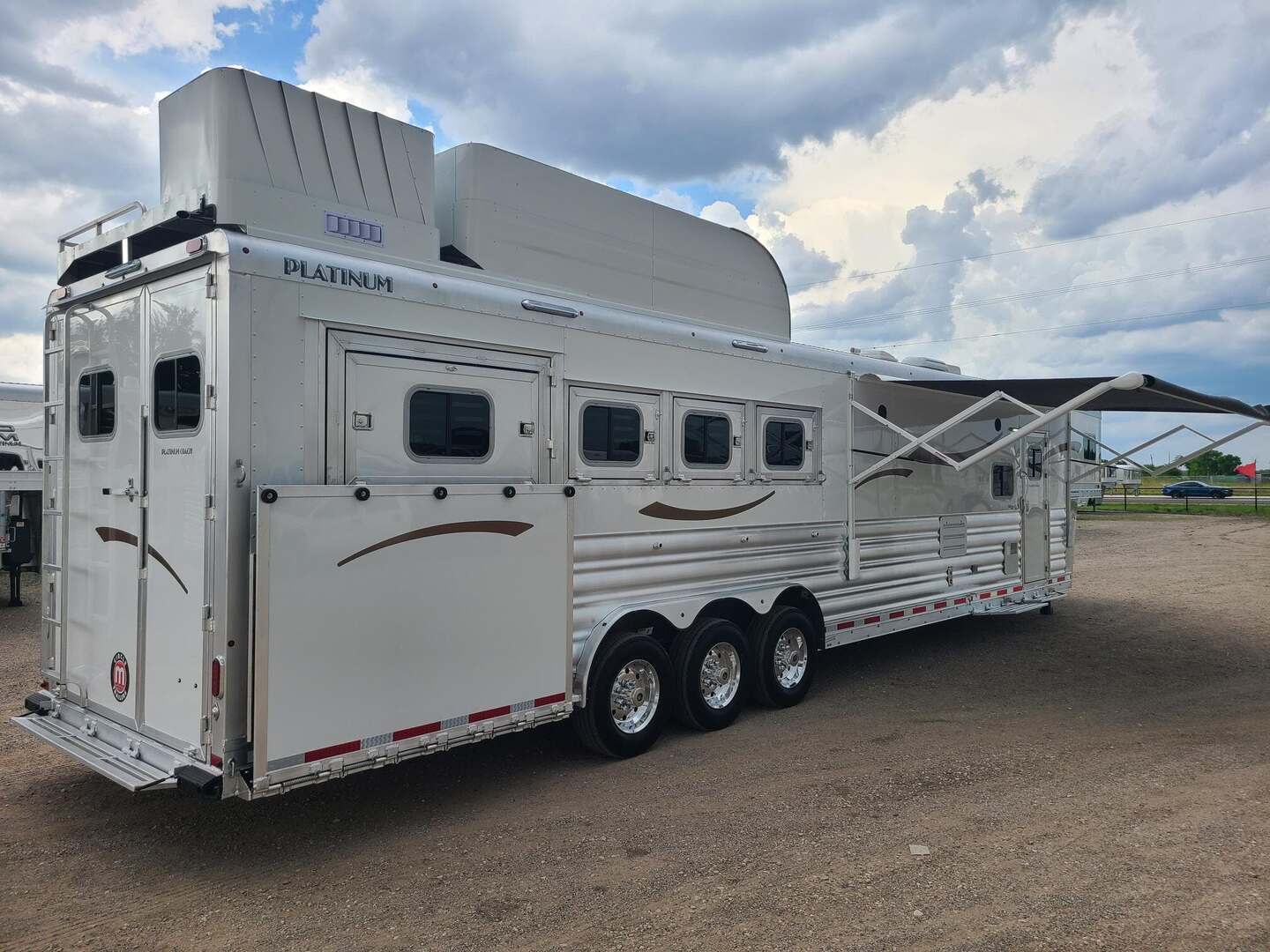

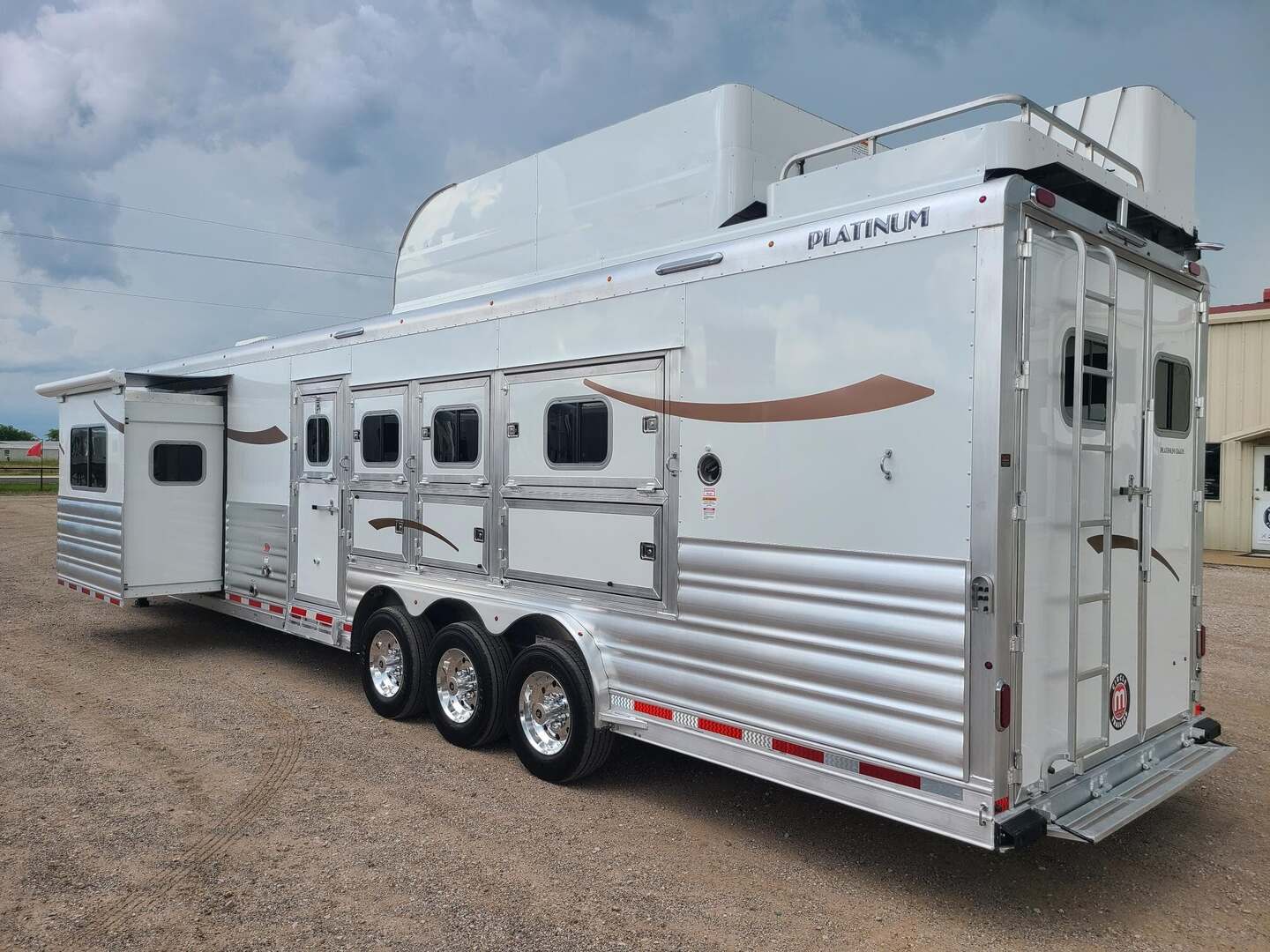

All aluminum (floor, sides, roof, & frame). Pre painted White aluminum skin on top and aluminum slats on bottom
8’ wide x37’ long box x 8’3” tall
Full Front Riser Wall Cover

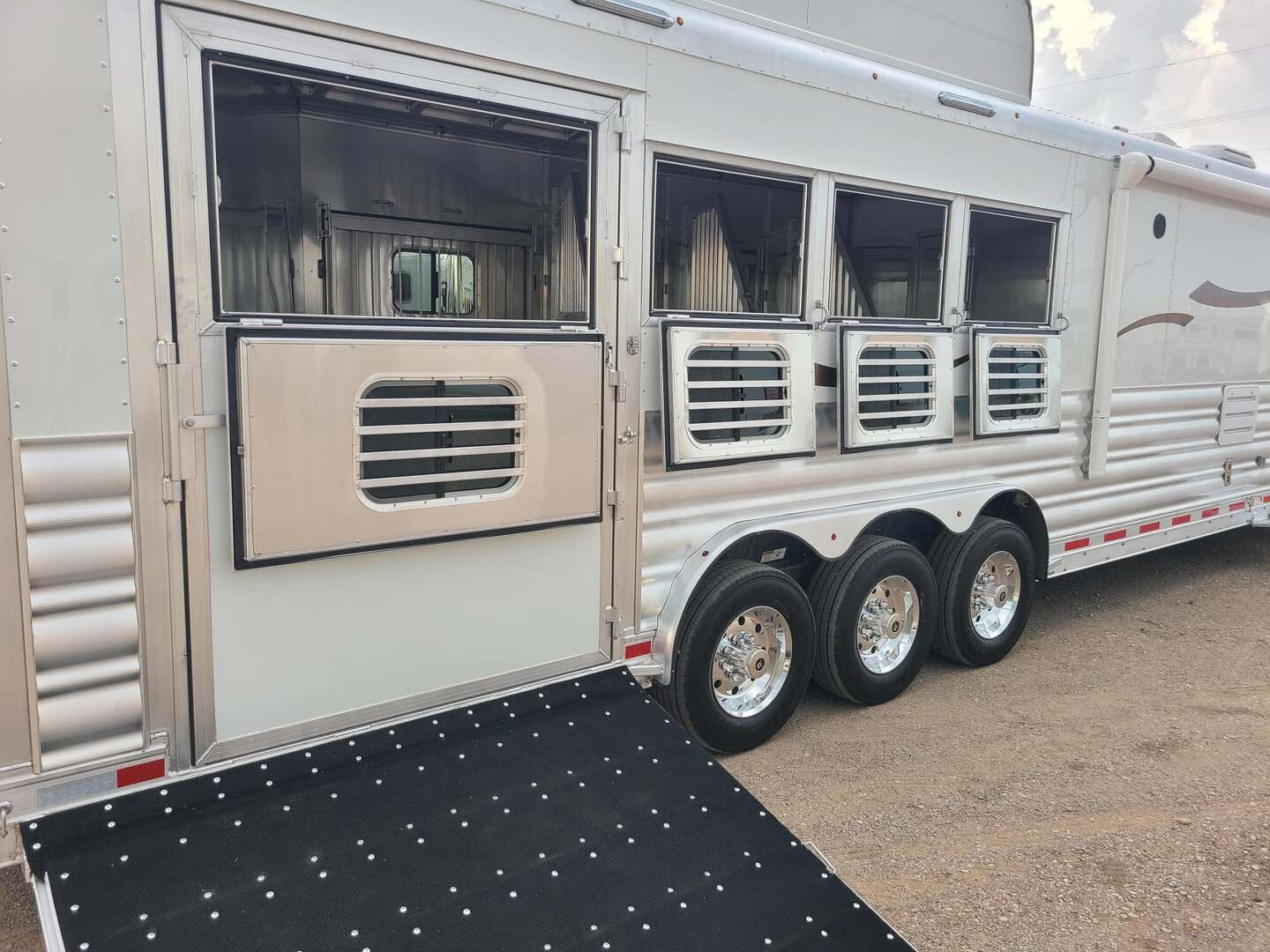

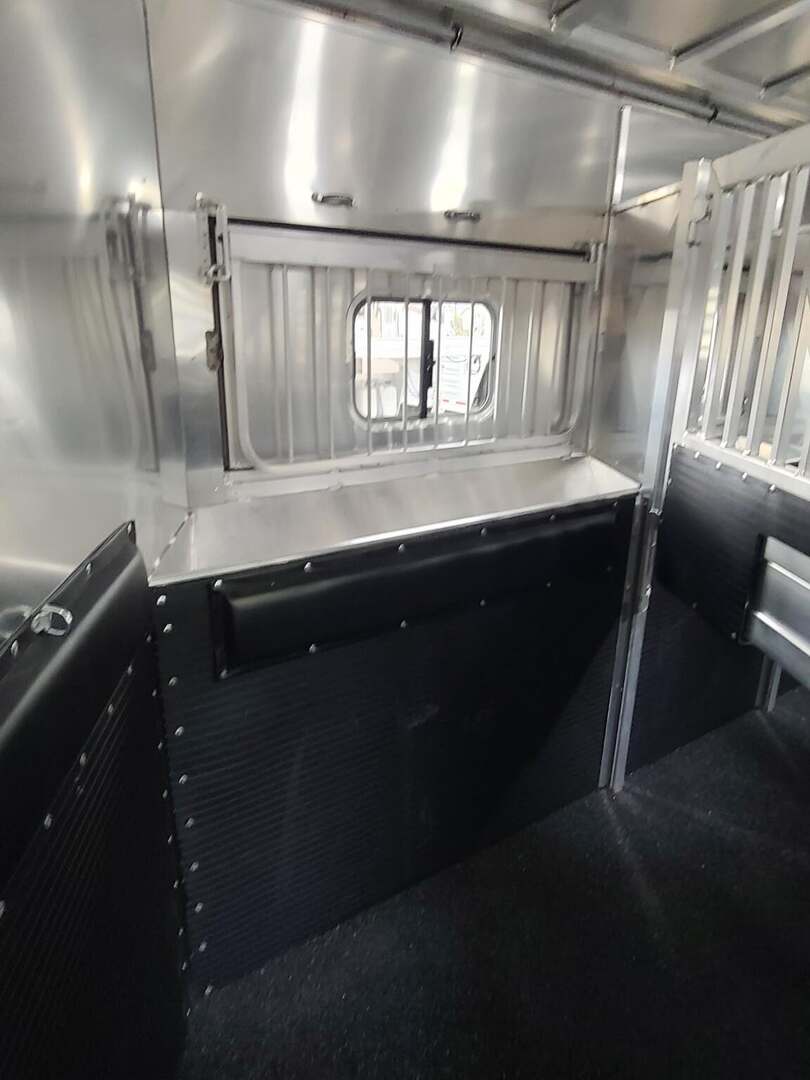

Drop down windows on head wall (4)
Drop down window bars on head wall (4)
Drop down windows on rump (3)
Oversized sliding bus window on load door (1)
Stainless steel on nose

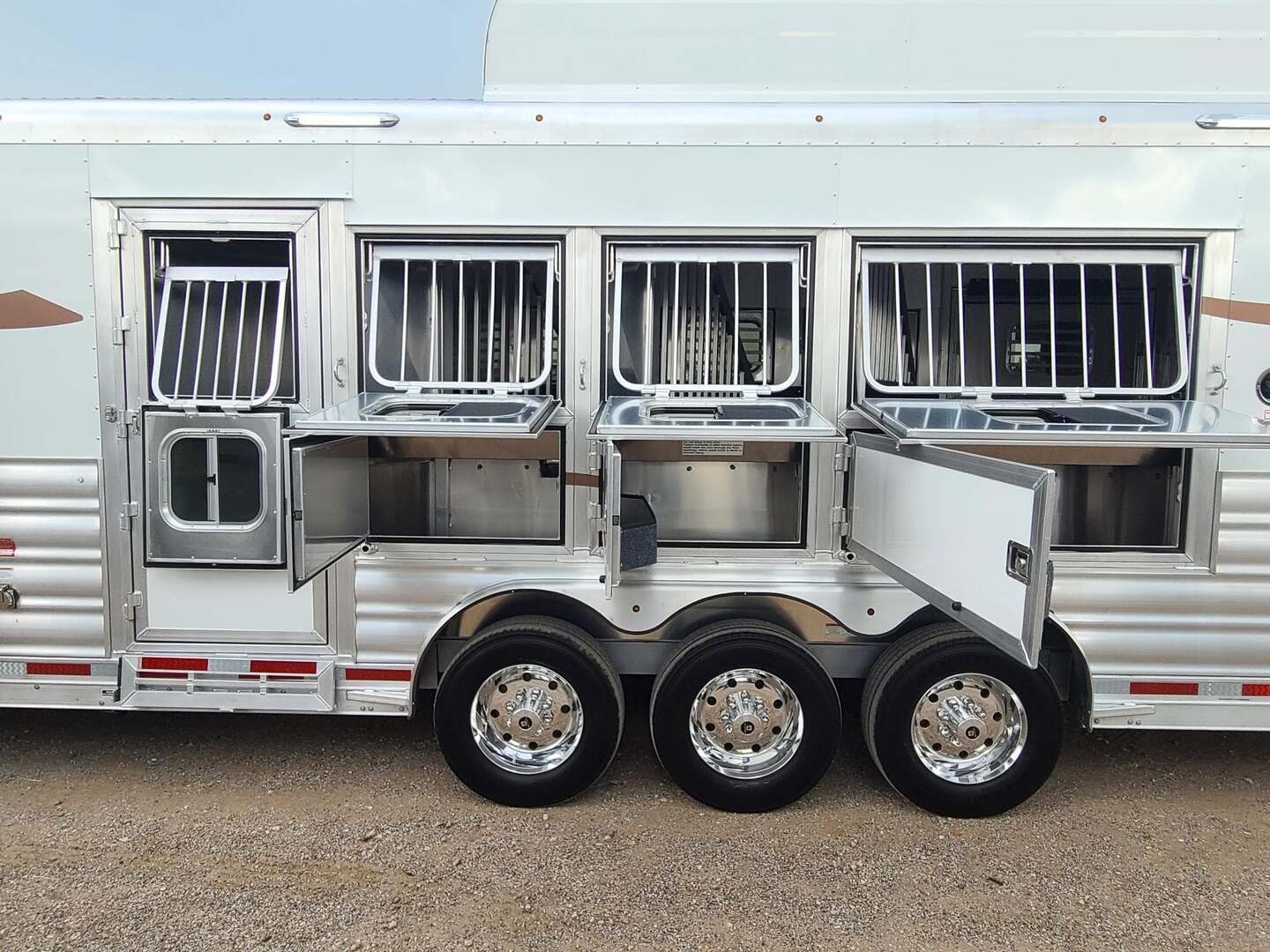

3 mangers with 3 access doors 22” deep
3– 7,000 lb rubber torsion axles
Electric brakes
GVWR: 21,000 lb
17.5” Aluminum Wheels (7)
215 75R17.5 Cooper tires
Full Width Rear Fold Down Step at full rear tack

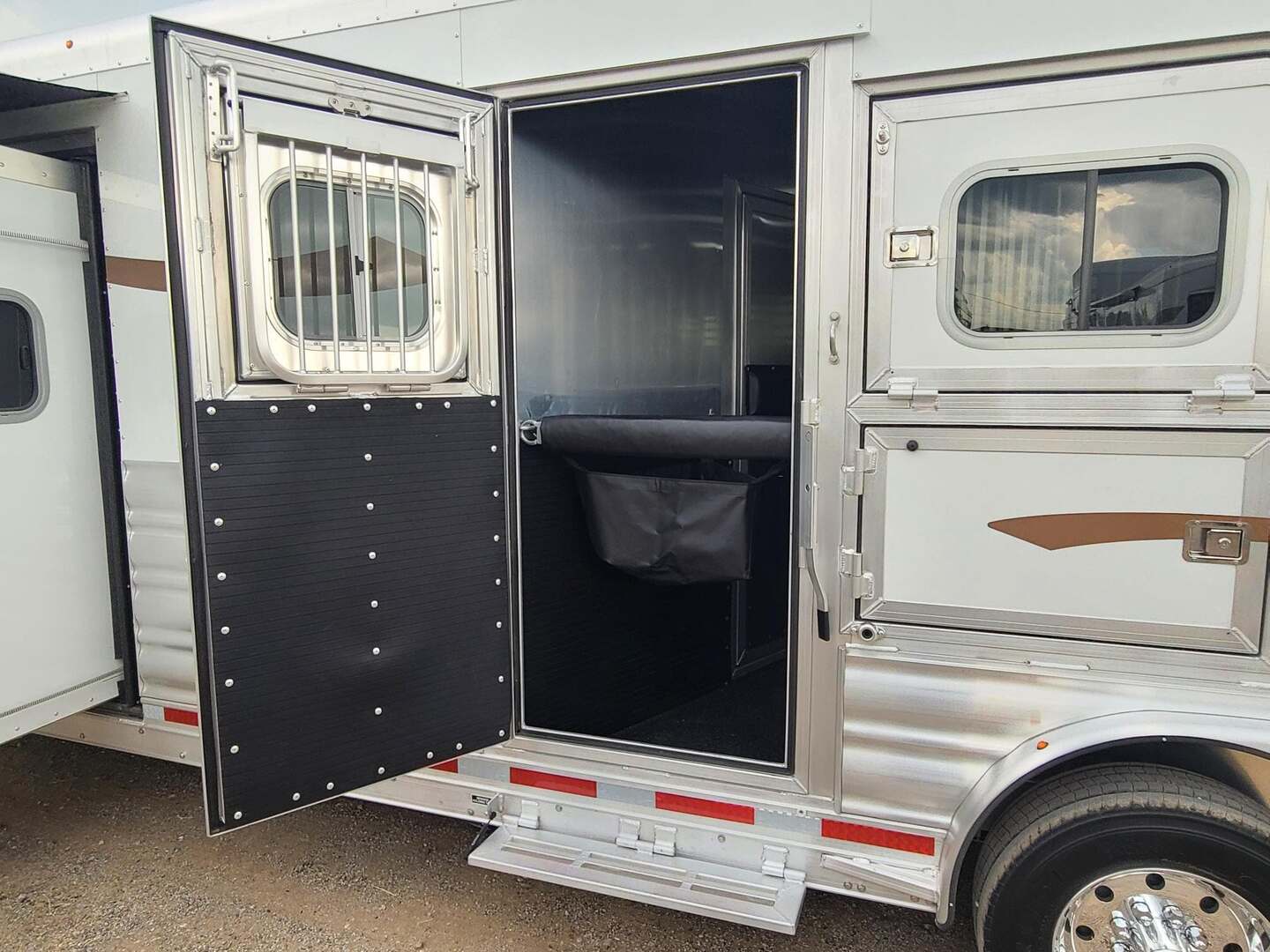

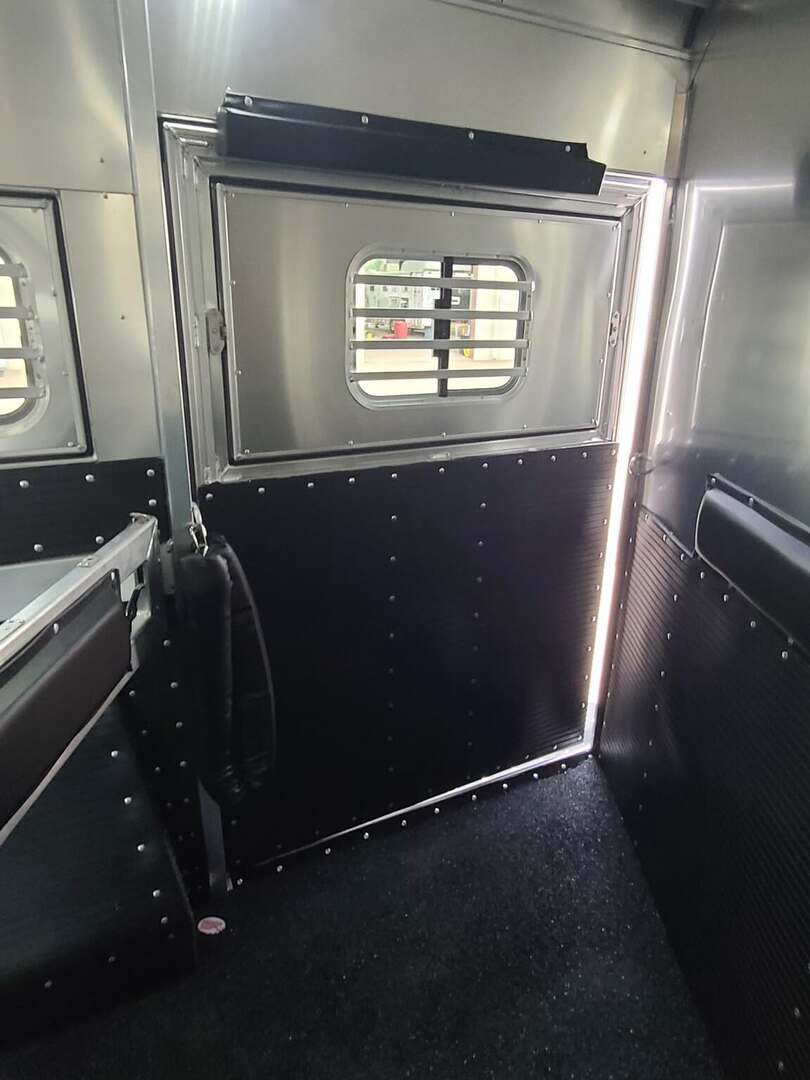

Escape door on street side with fold down step and camper latch

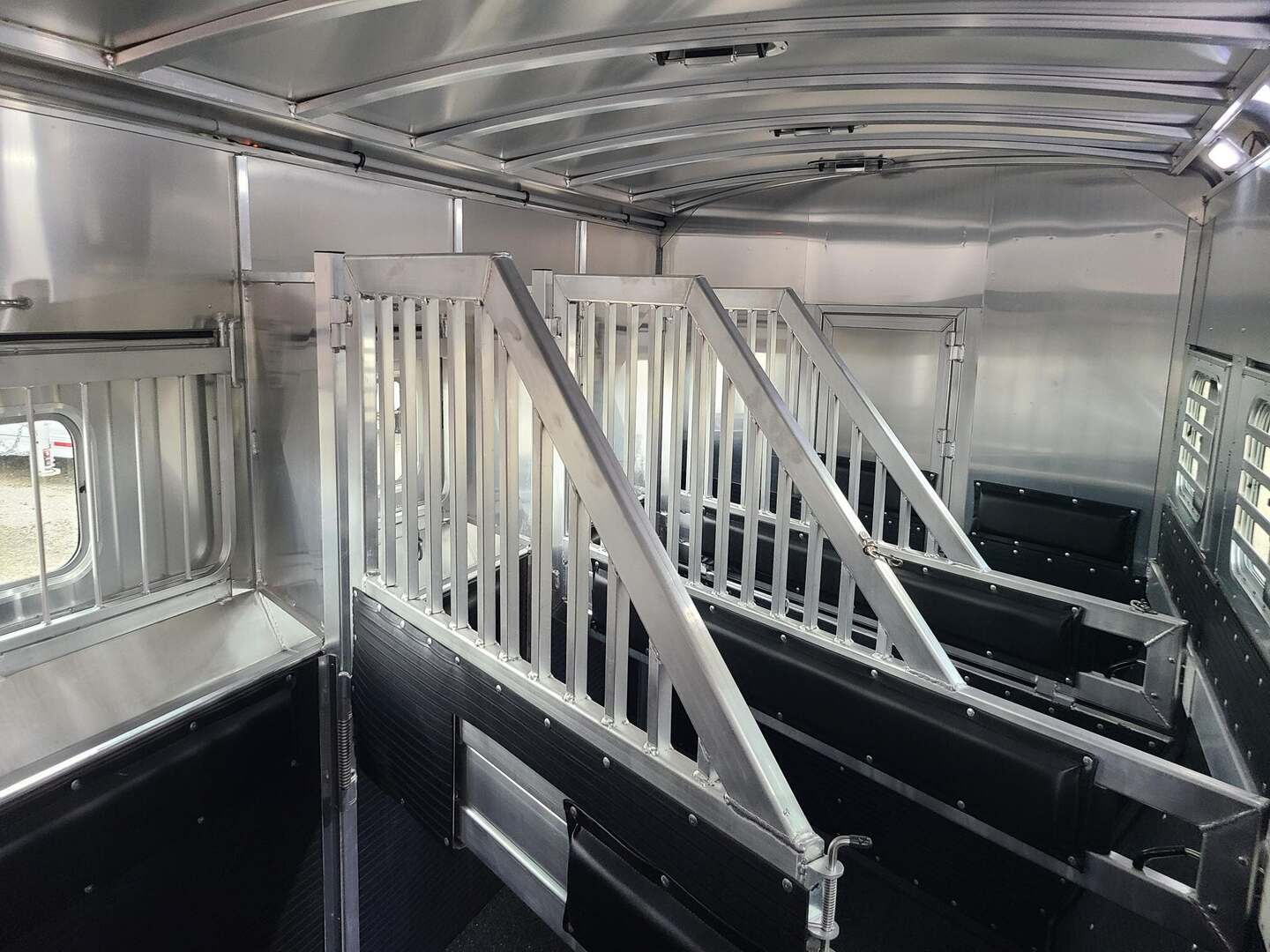

3 dividers – front has removable stud panel- all spring loaded
Stall width measurements (wall measurements) 40”-39”-39”-47”

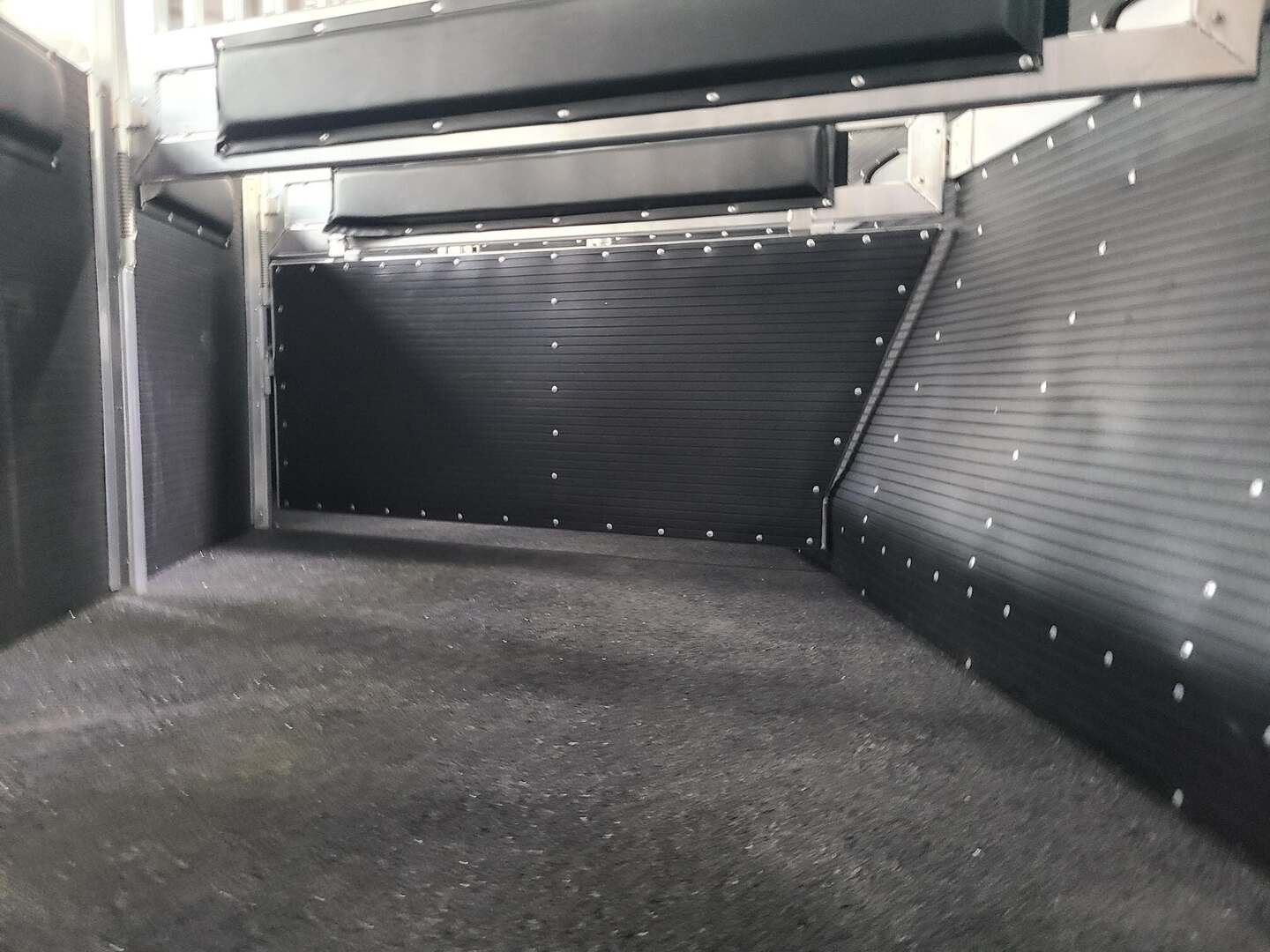

Walls rubber lined
Rubber mats
Divider pads
Insulated and lined ceiling in horse compartment
4 L.E.D. cargo lights in horse compartment
2 Load lights on back of trailer
2 L.E.D. cargo lights on side of trailer (1 curbside & 1 street side)

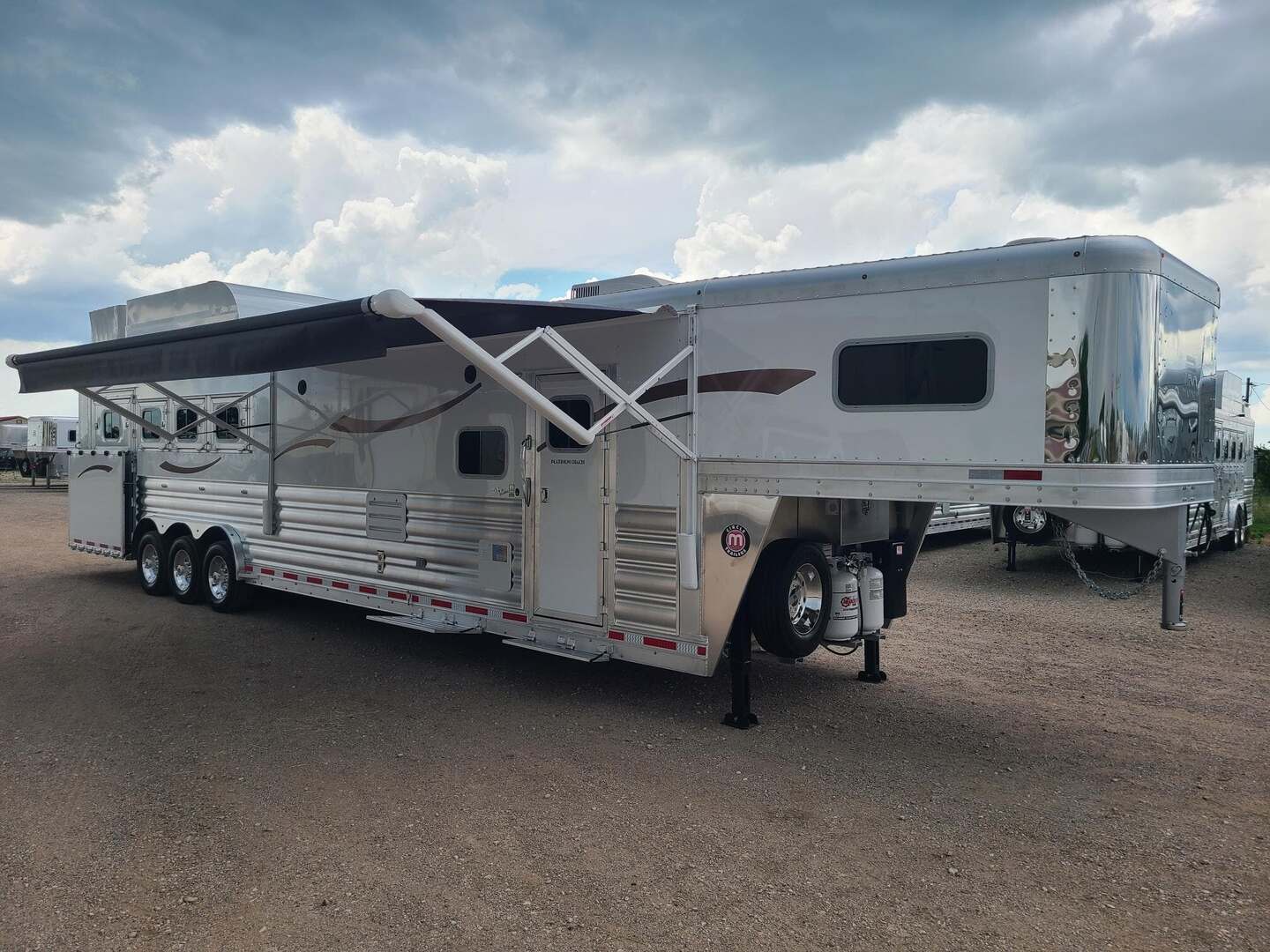

21’ Power Awning on curbside

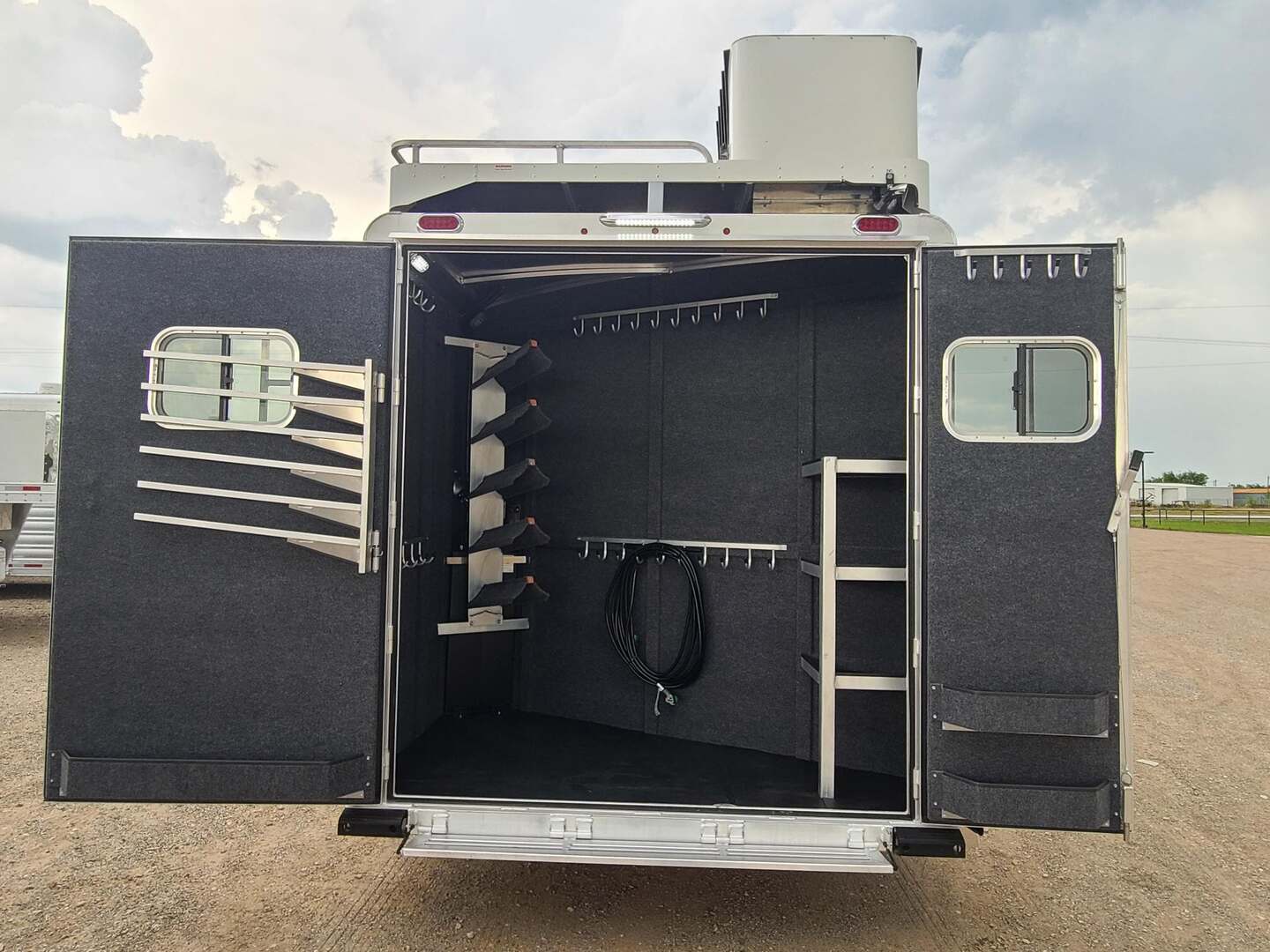

Fully enclosed and carpeted full rear tack
Rear tack includes: large 4 tier adjustable saddle rack, 20 hooks, and 2- 4-tier swinging blanket bars on doors, 2 brush trays
Big Foot Double Leg Hydraulic automatic jack
3-12 Volt batteries in tray under nose
2-20 Lb LP Tanks
7 way RV light plug, 2 5/16” Coupler, safety chains, and emergency brake system
Fully enclosed L.E.D. tail lights and running lights
8’ Integrated Hay Pod with lid and landing behind pod

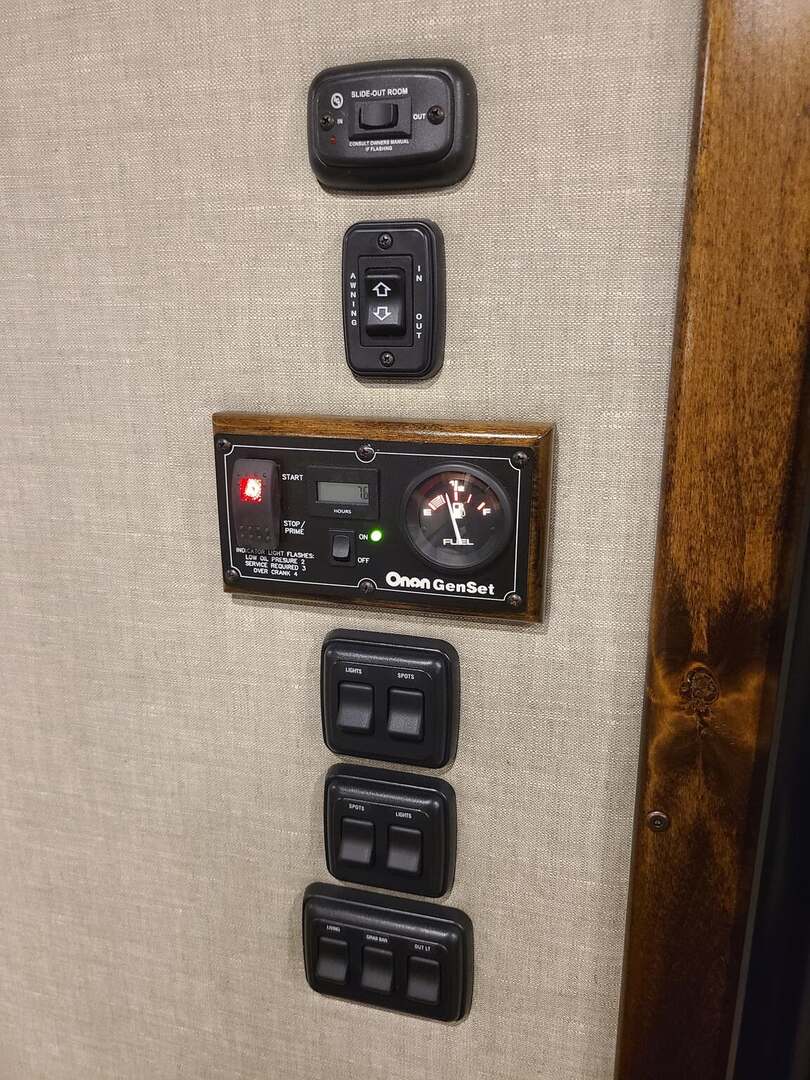

Onan 5,500w gasoline Generator in compartment on roof w/ remote start in living quarters
Living Quarter Specs
17’ LQ Conversion by Lakota

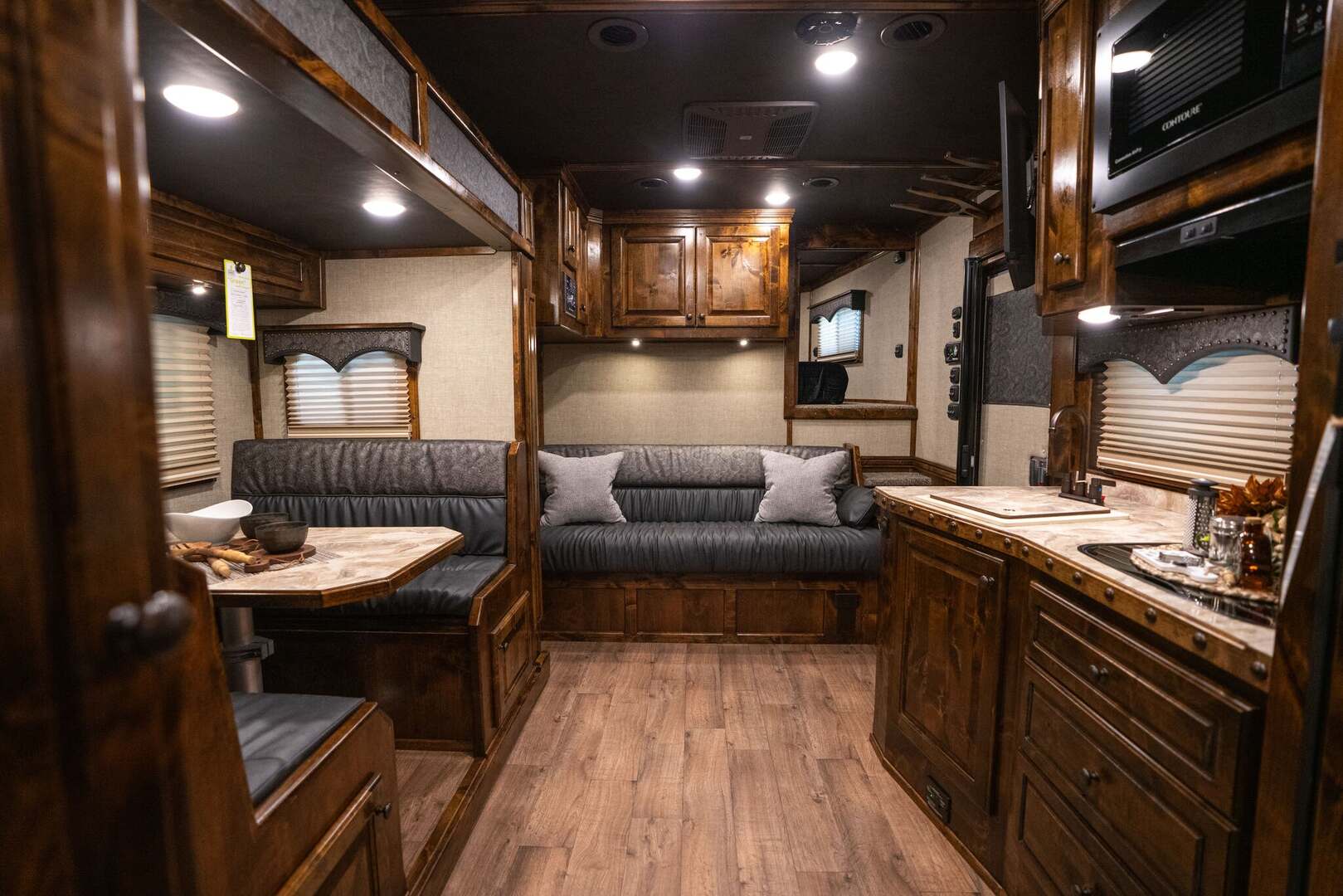

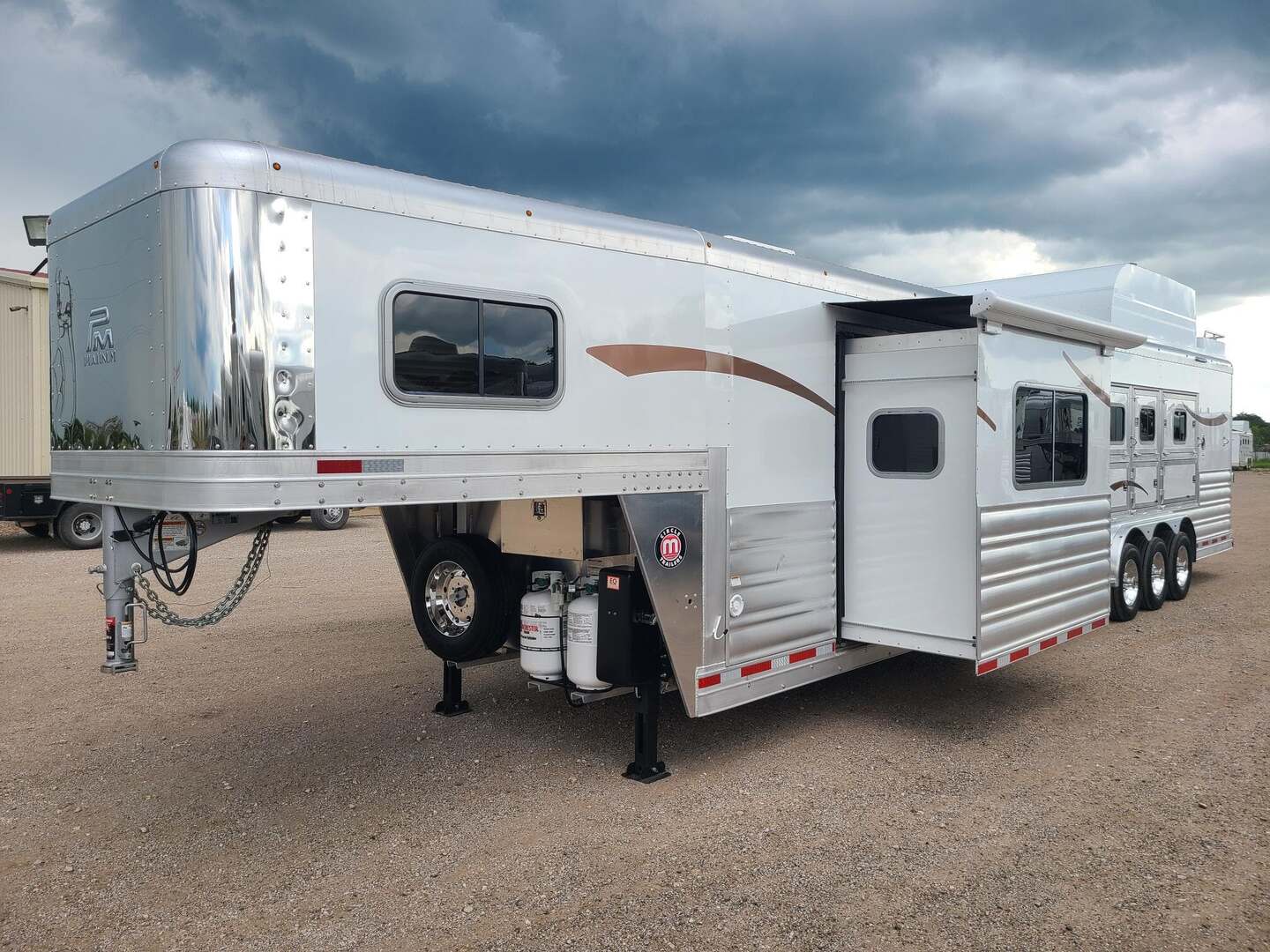

Double Slide Out

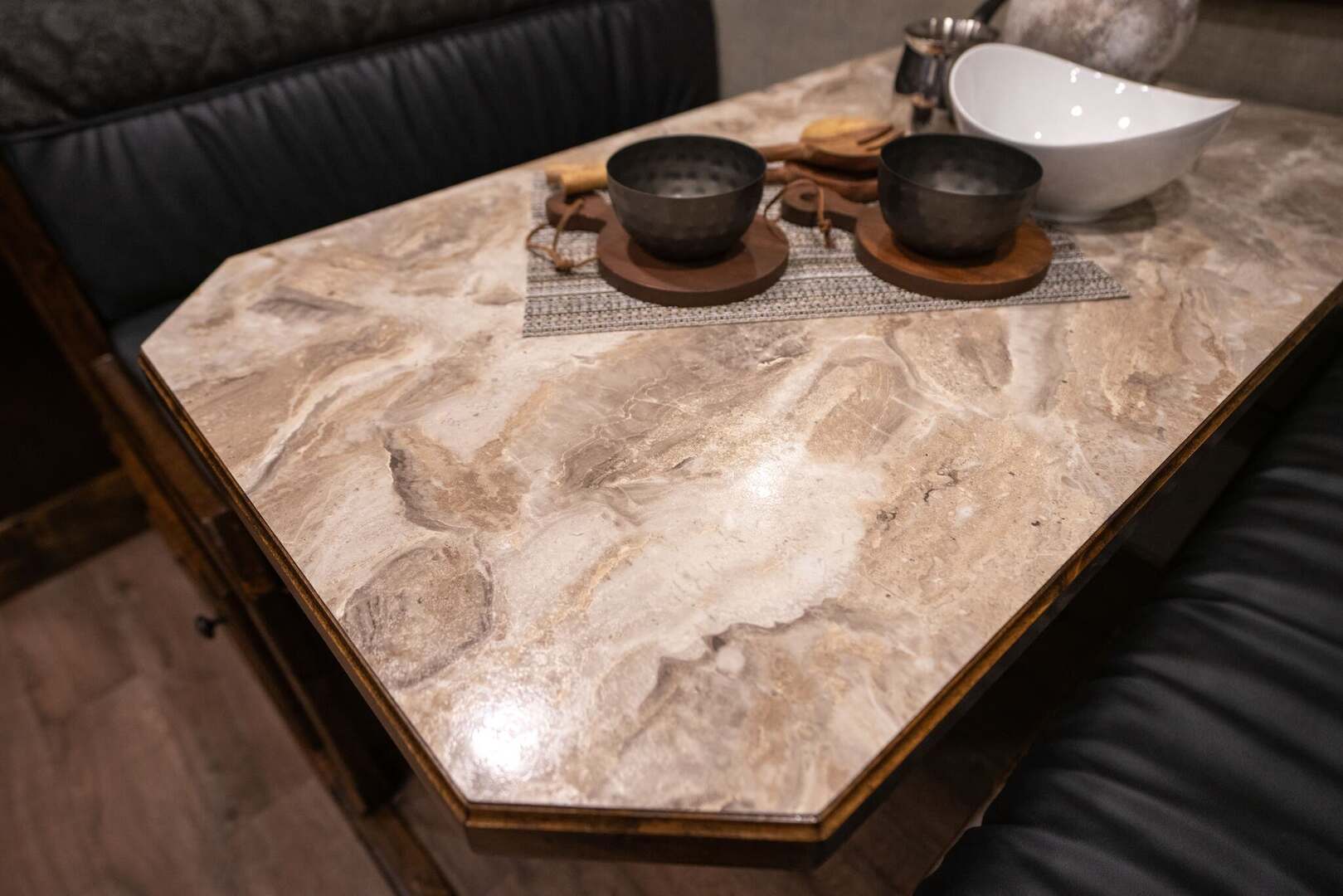

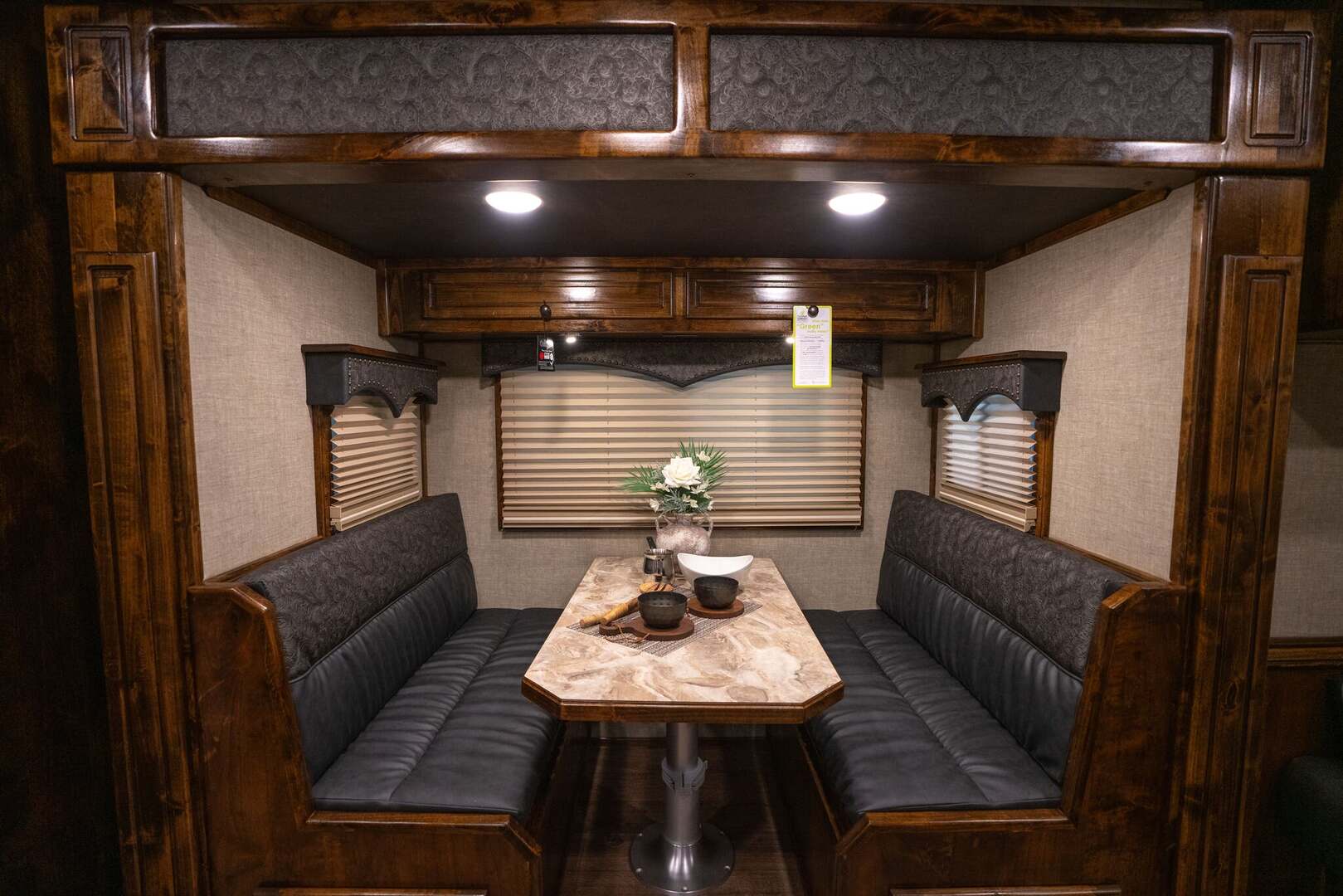

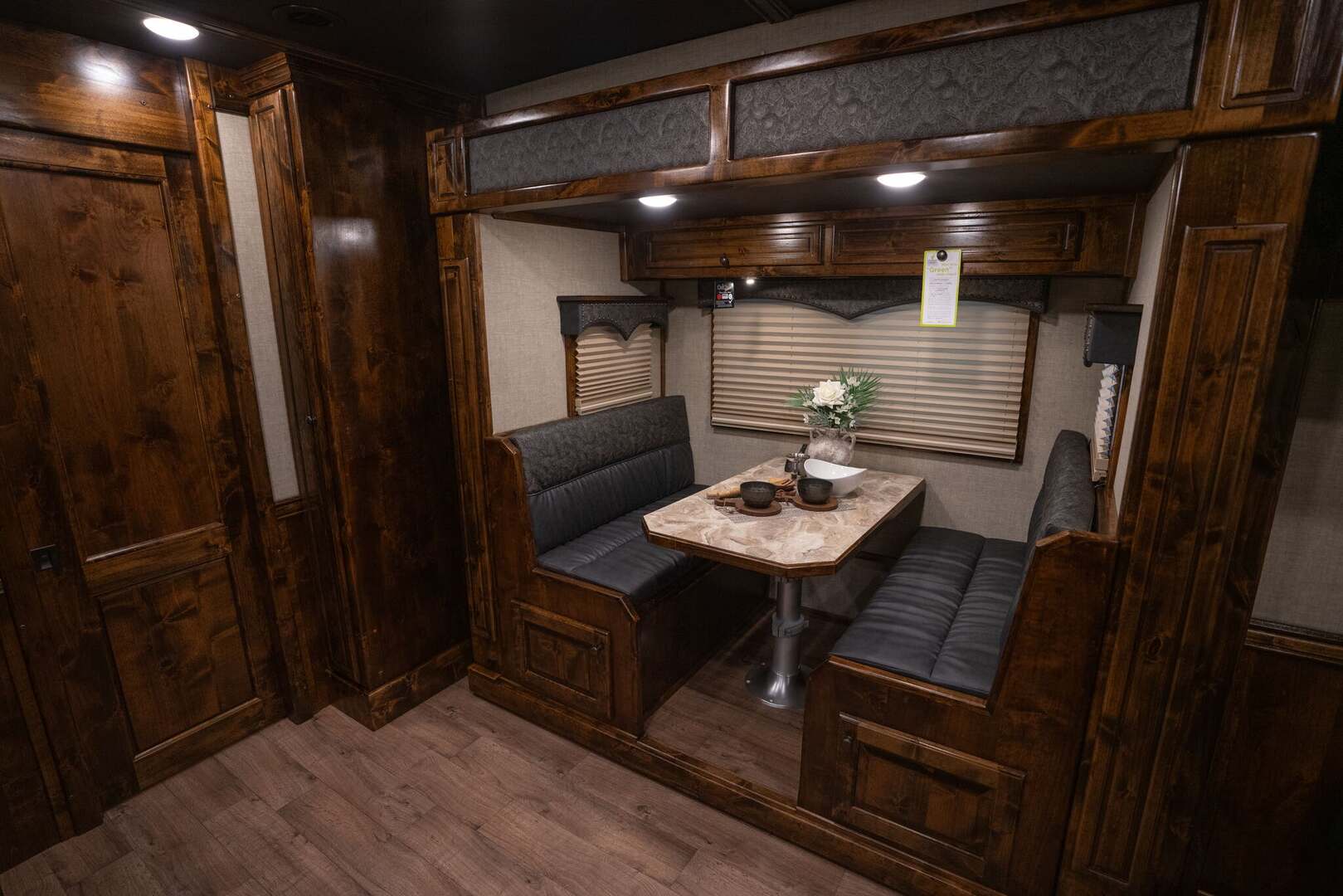

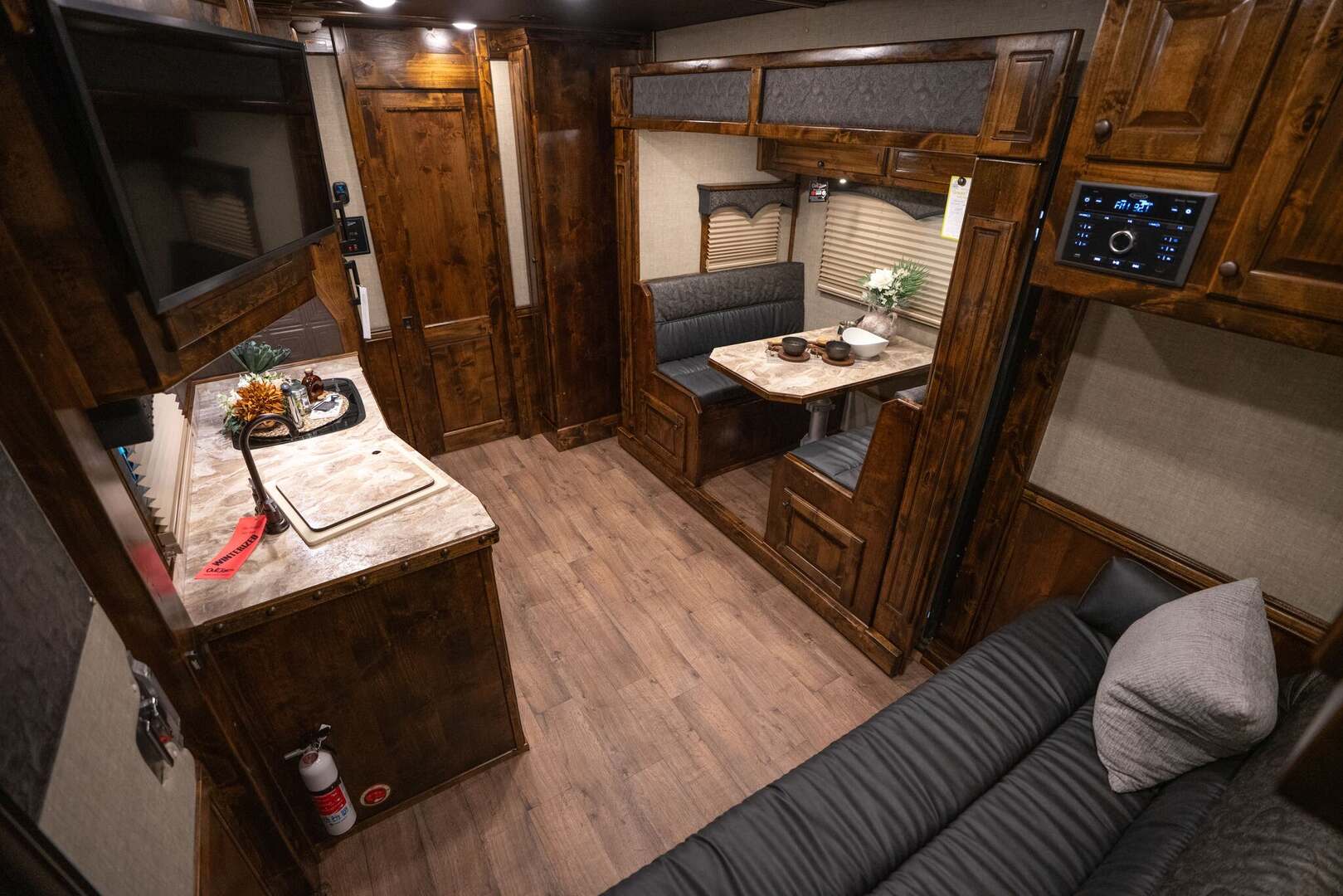

9’ Slide out on Street side (Dinette and Fridge in slide out)

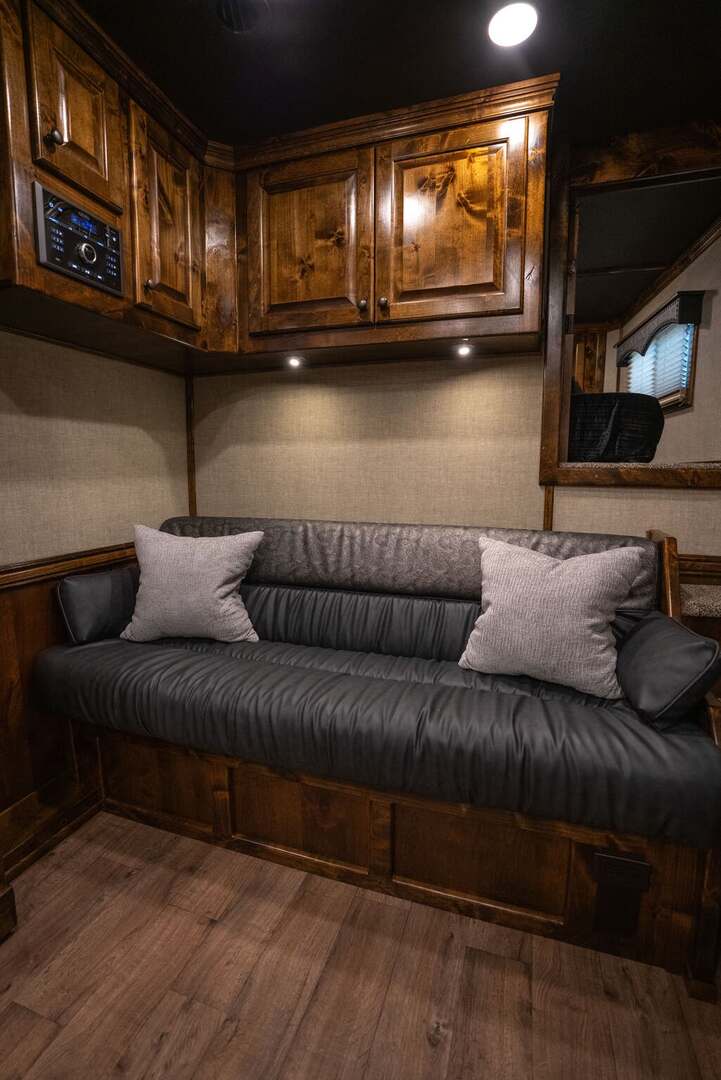

6’ Slide Out on Curbside (Recliners in slideout)
HIS AND HER (DUAL ENTRY INTO BED AREA) BED ENTRY

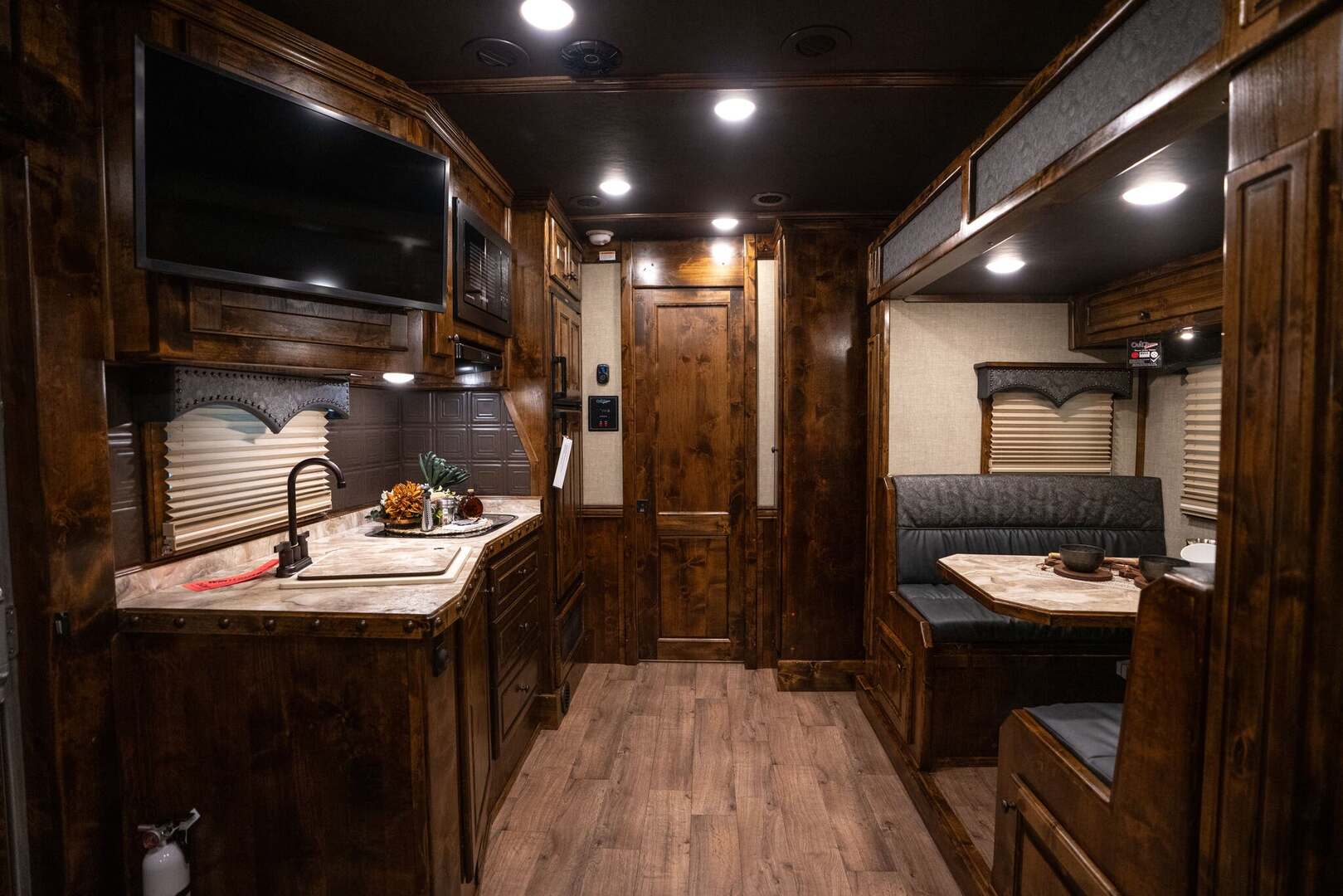

Windswept Hickory interior package
Fireplace under TV
Insulated floor
T.R. Arnold Certified

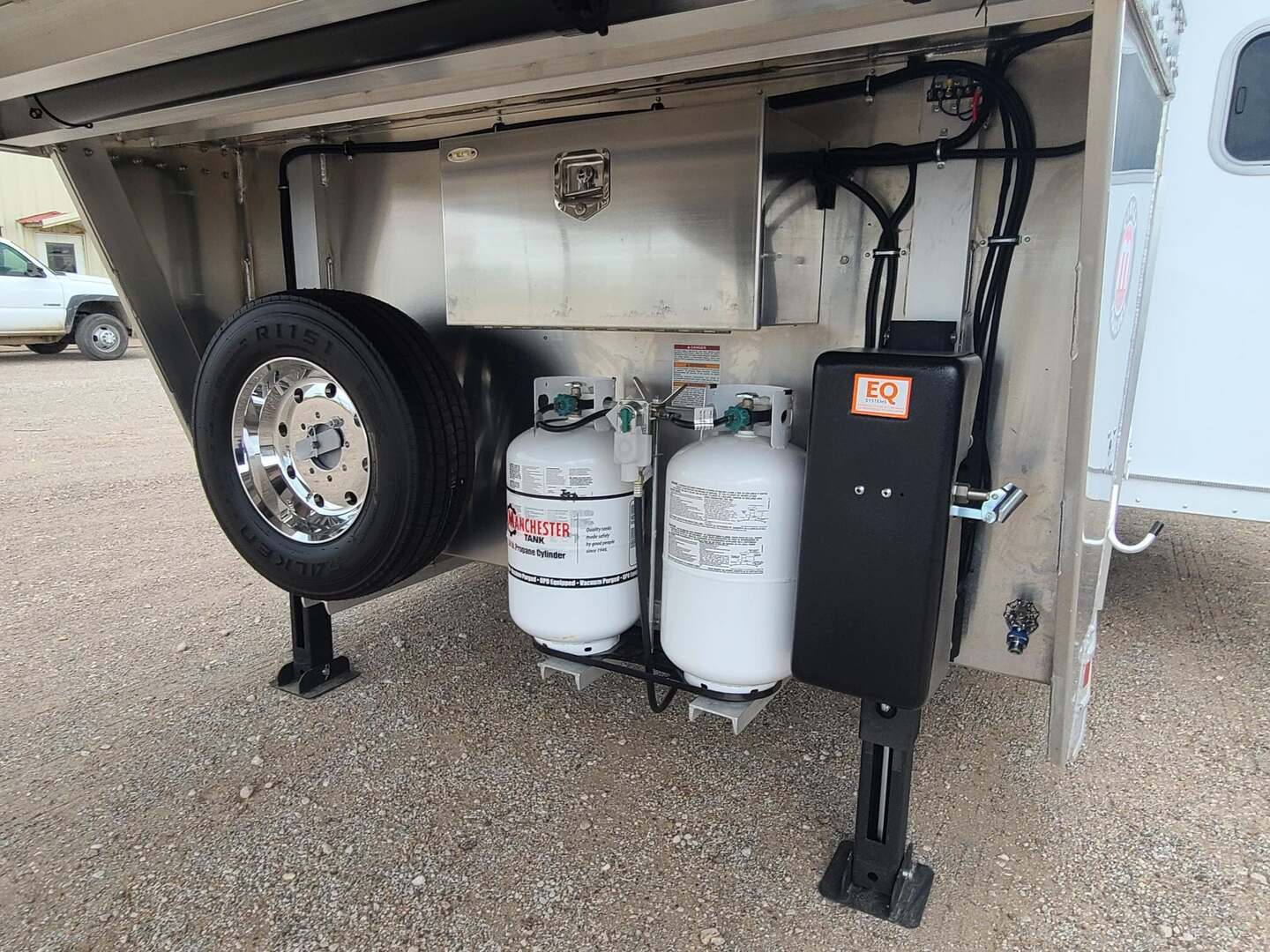

2 20 Lb Liquid Propane (LP) tanks mounted under enclosed neck
3 - 12 volt house batteries
Alante walls and ceiling
Arenite Cream Countertops
Simulated hardwood linoleum floor
Day night shades on all windows

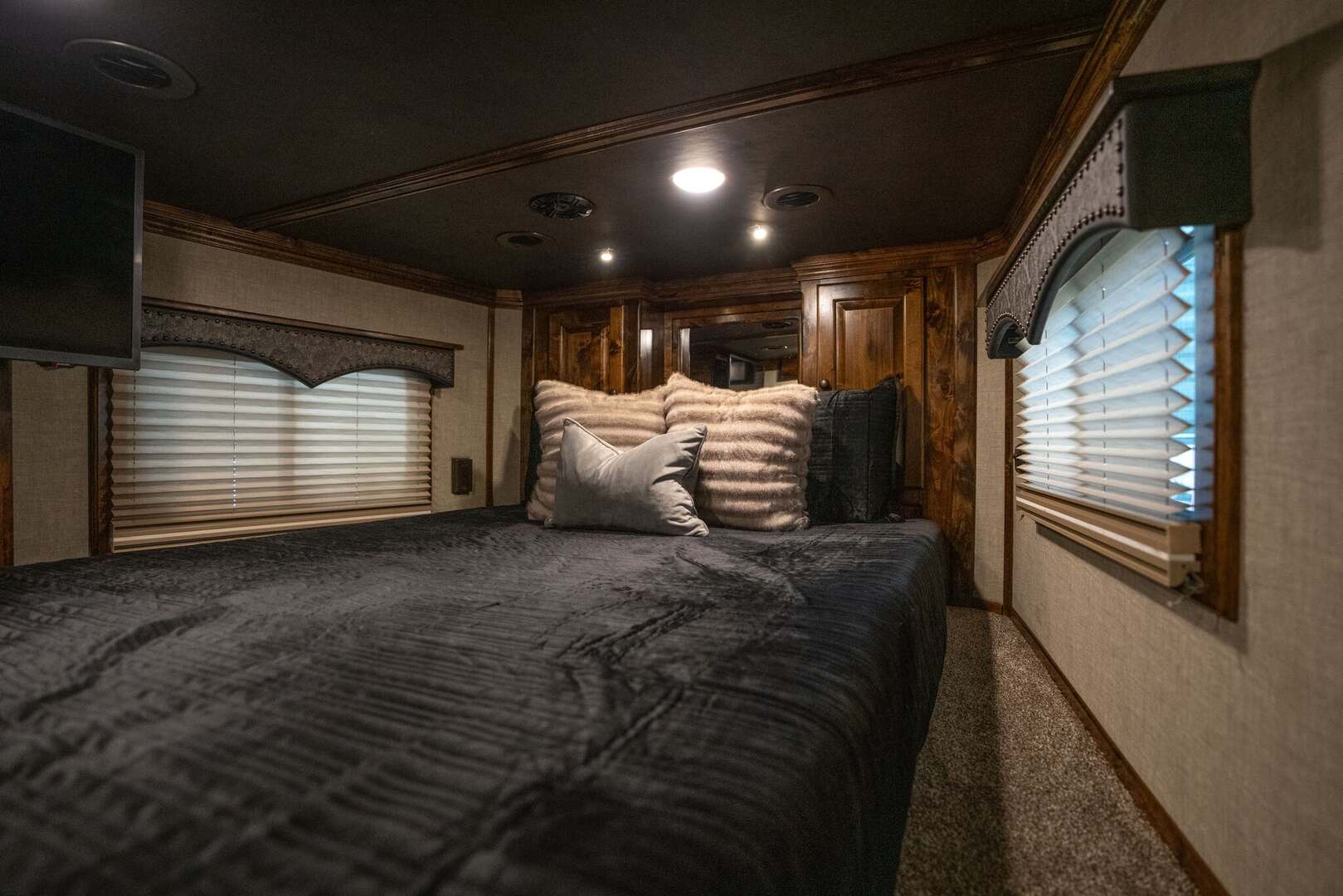

Queen size mattress w/ dropped nose in bedroom for extra headroom
19” flat screen tv in bedroom

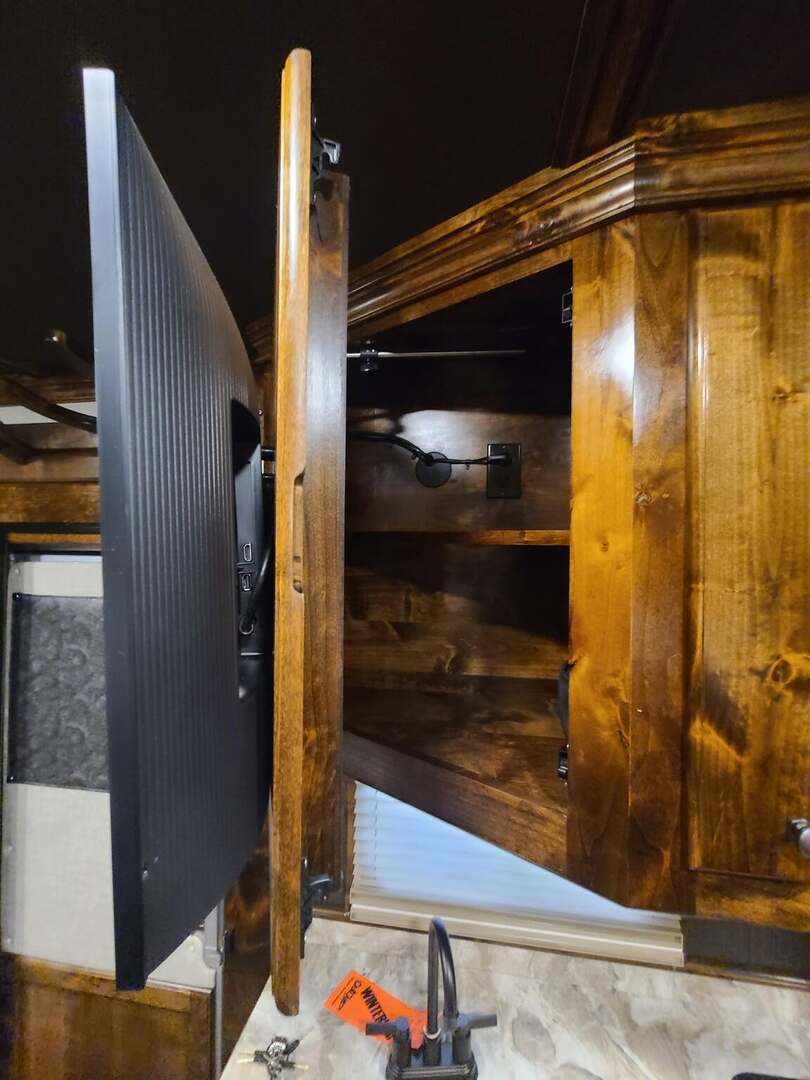

32” flat screen TV in living area

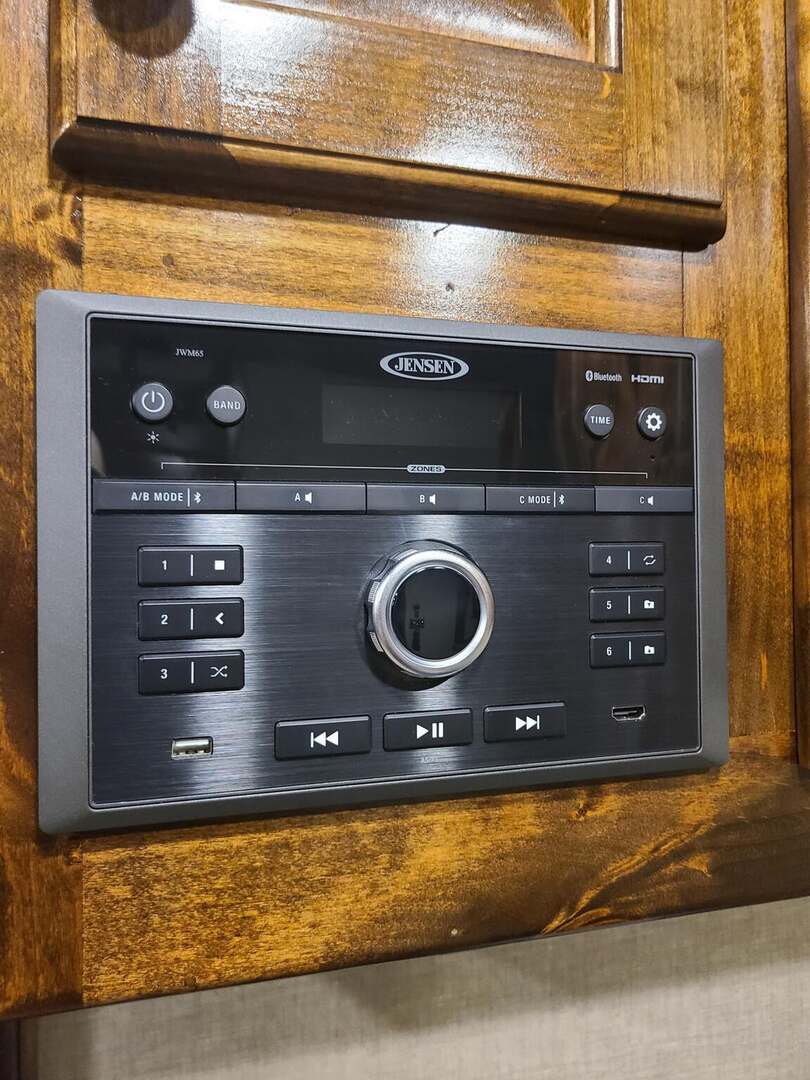

AM/FM/CD/DVD Player w/ USB port and bluetooth capability

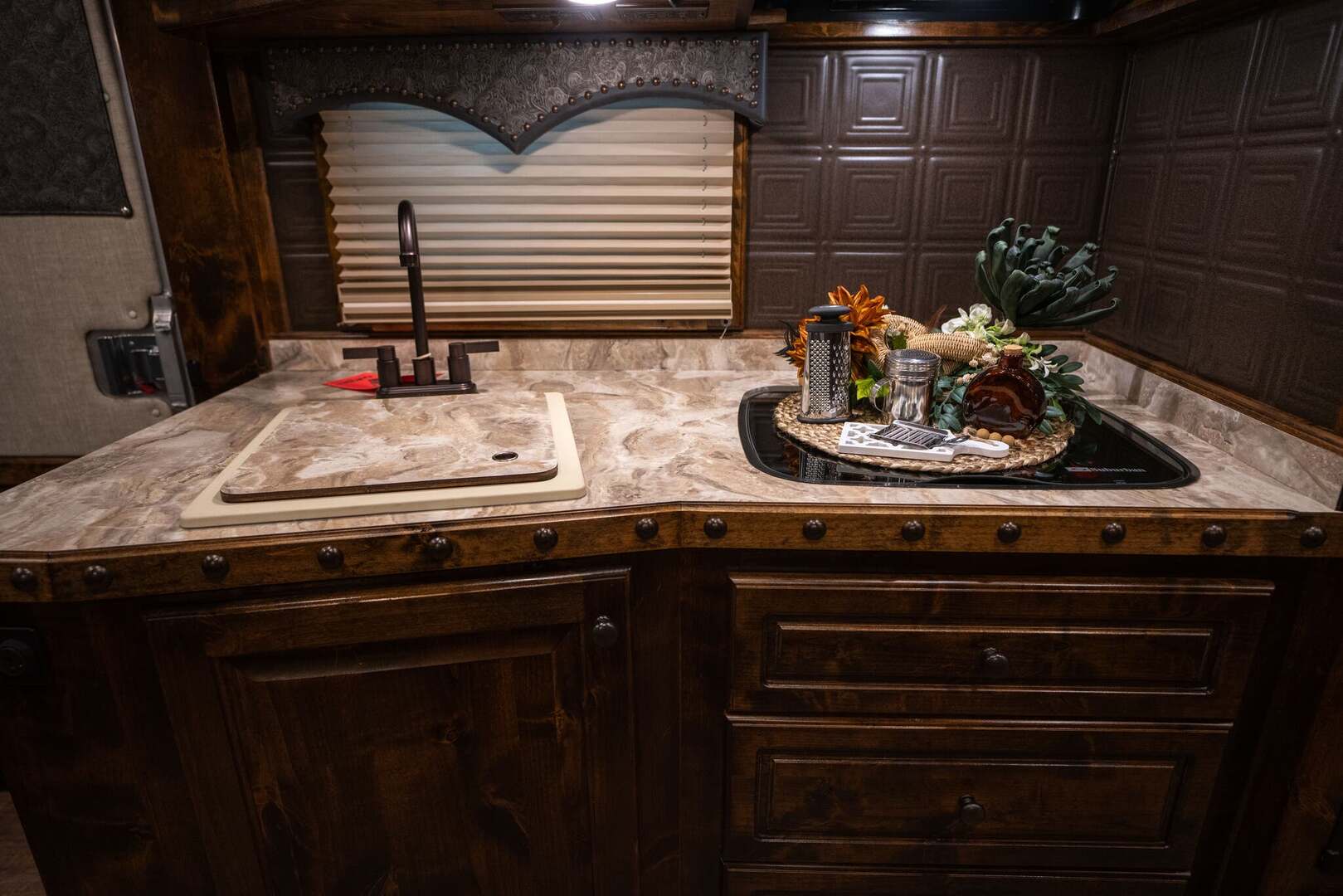

3 burner Recessed Oven
Furrion Convection Microwave

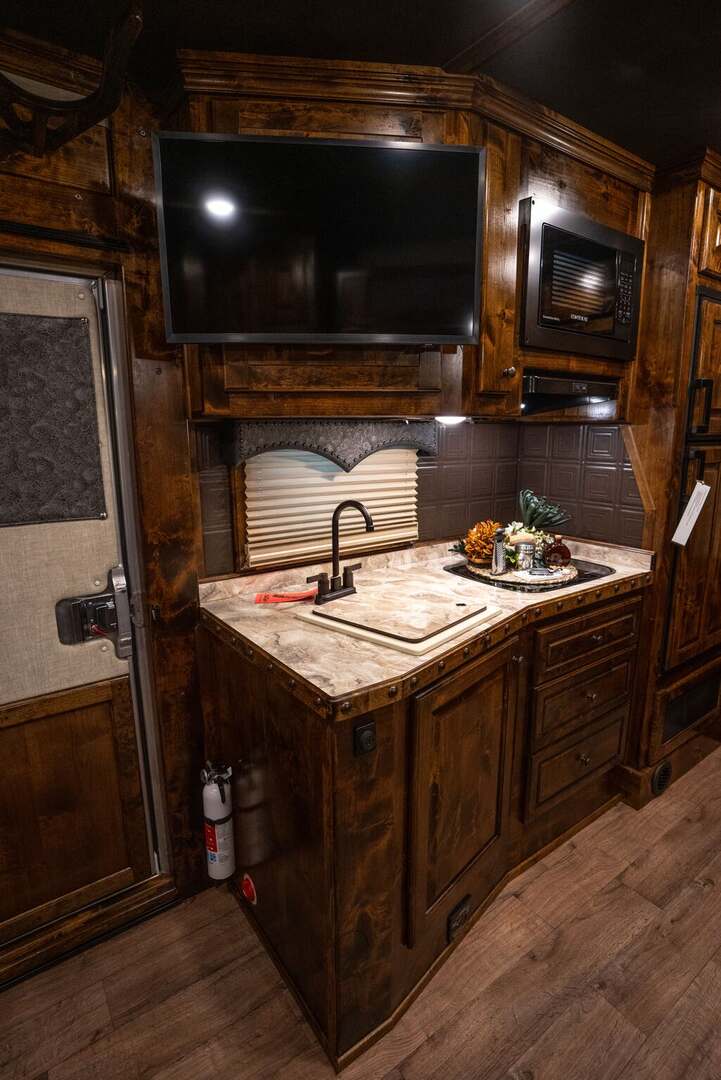

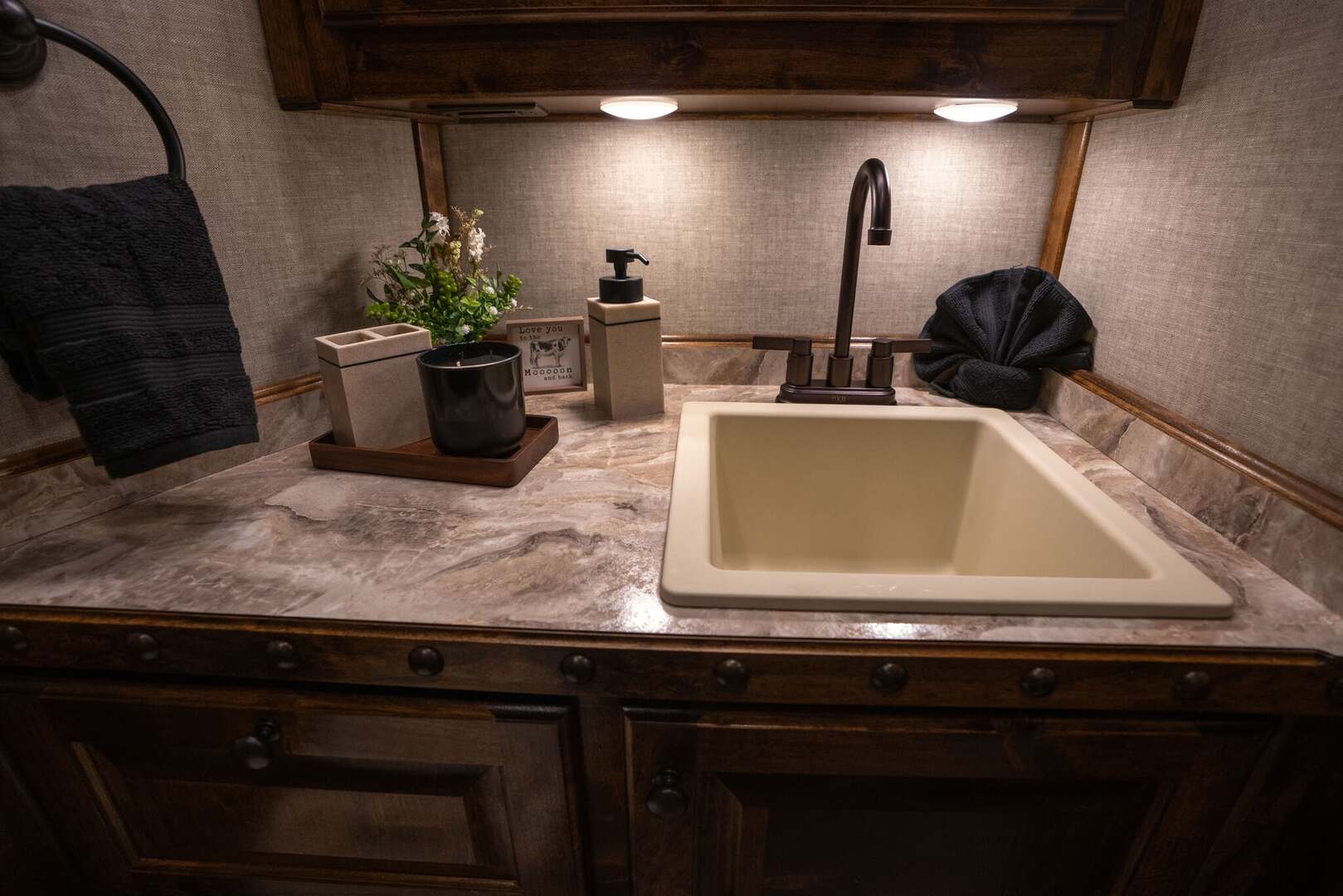

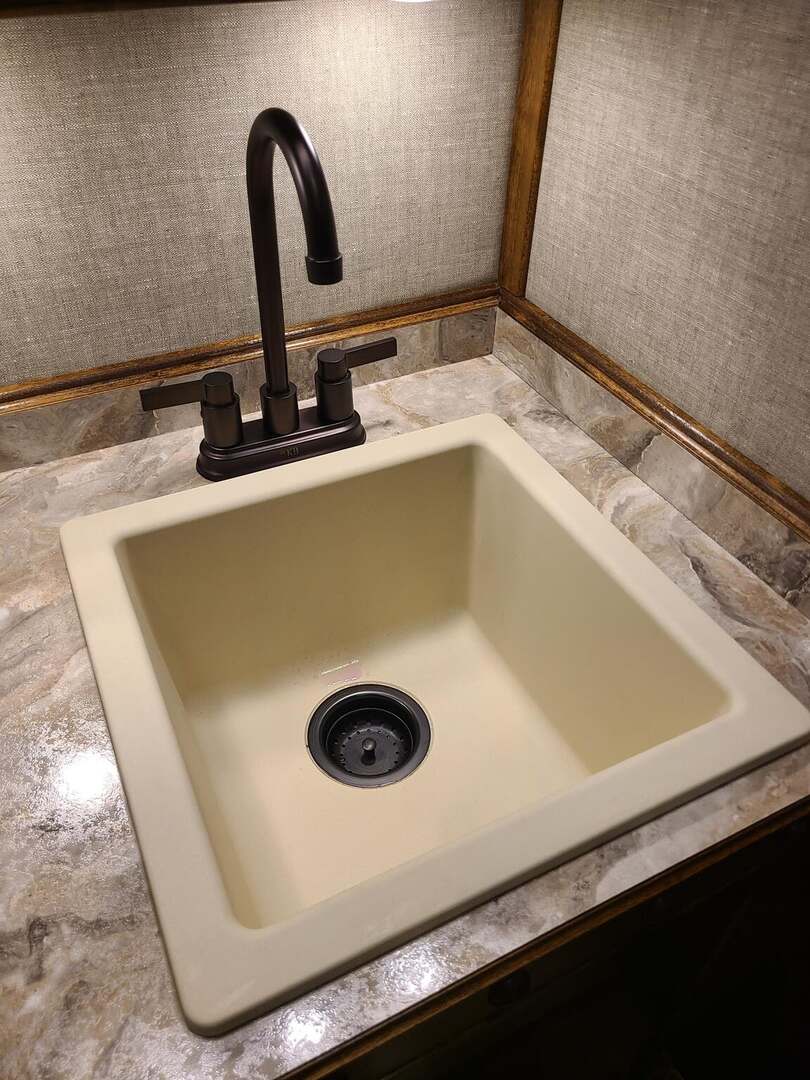

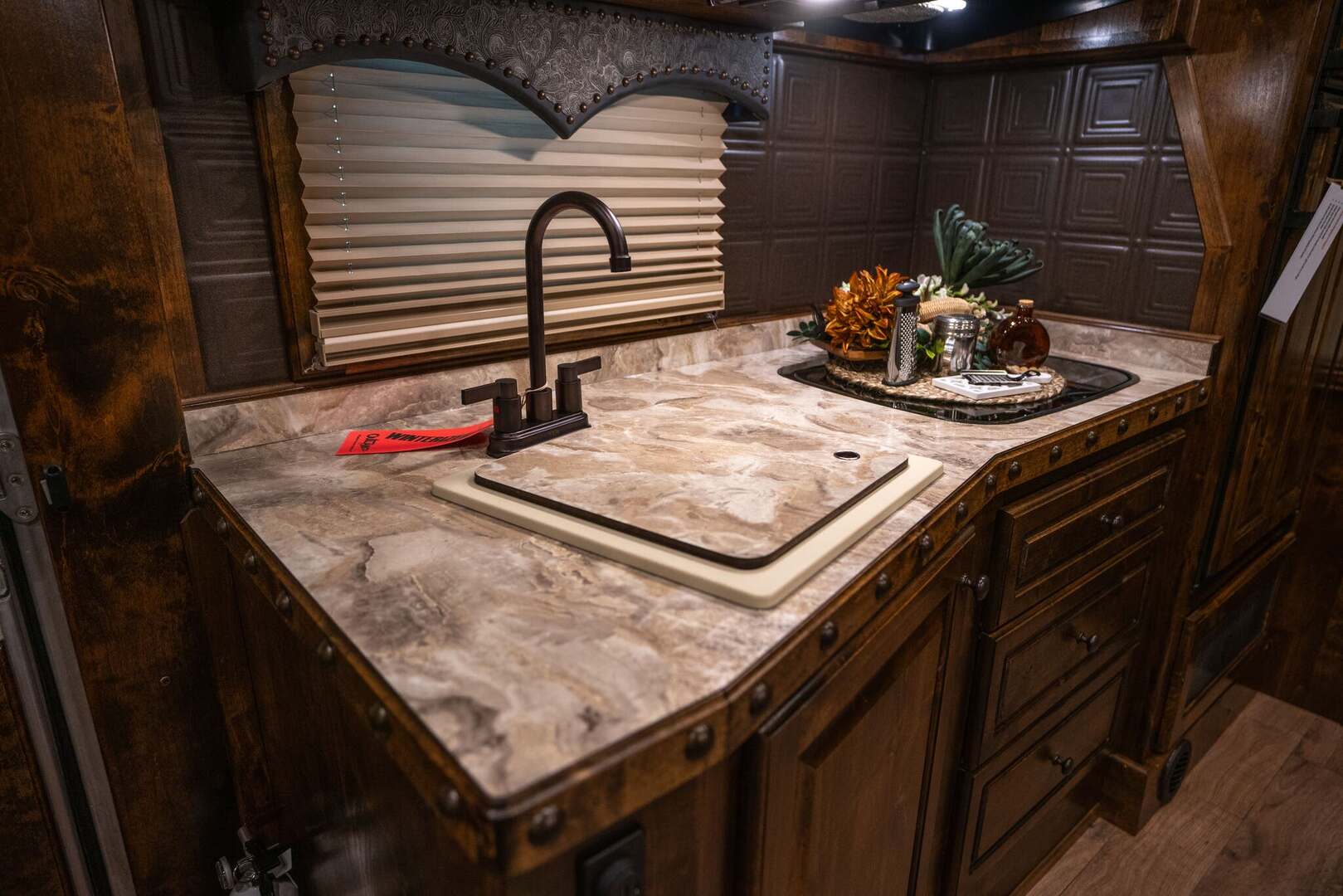

Kitchen sink (double)

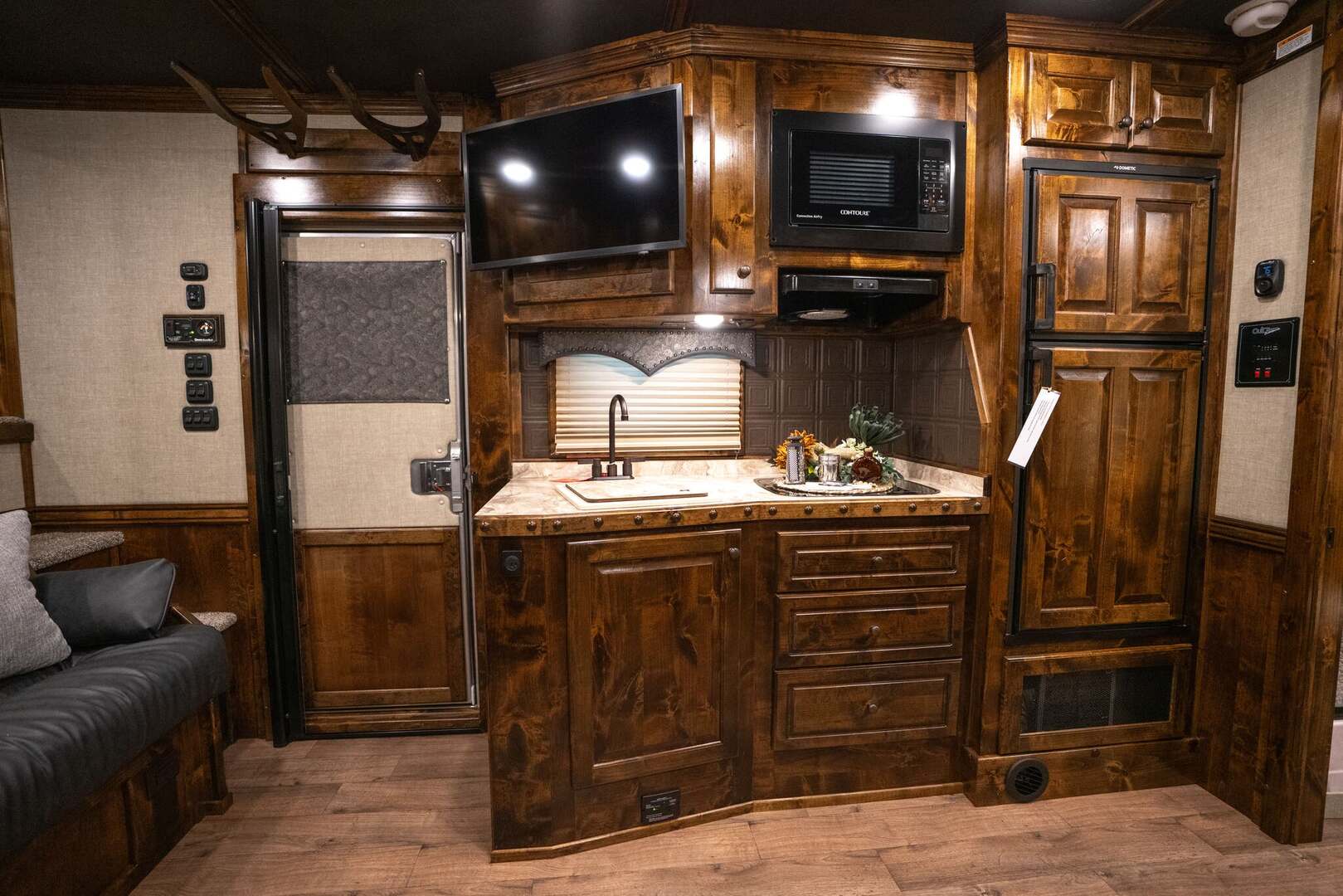

6.0 Dometic 2 way refrigerator (LP or 110 Volt)
2 windows in nose, 3 windows in slide, 1 window on curbside
Power TV antennae
Wineguard Satellite system
2- 13,500 BTU air conditioner w/ heat strip ducted
50 Amp service
20,000 BTU Ducted LP furnace

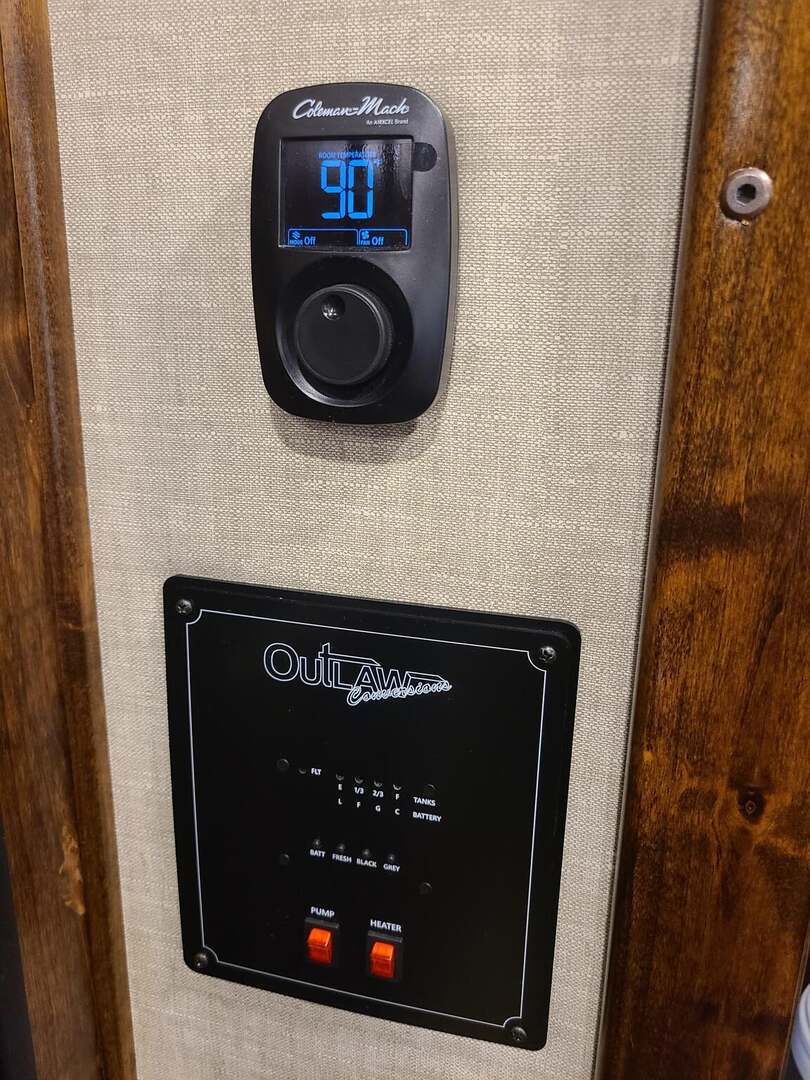

Thermostat
6 gallon hot water heater (LP) w/ start switch in LQ
Fresh water tank
Pocket door into bathroom

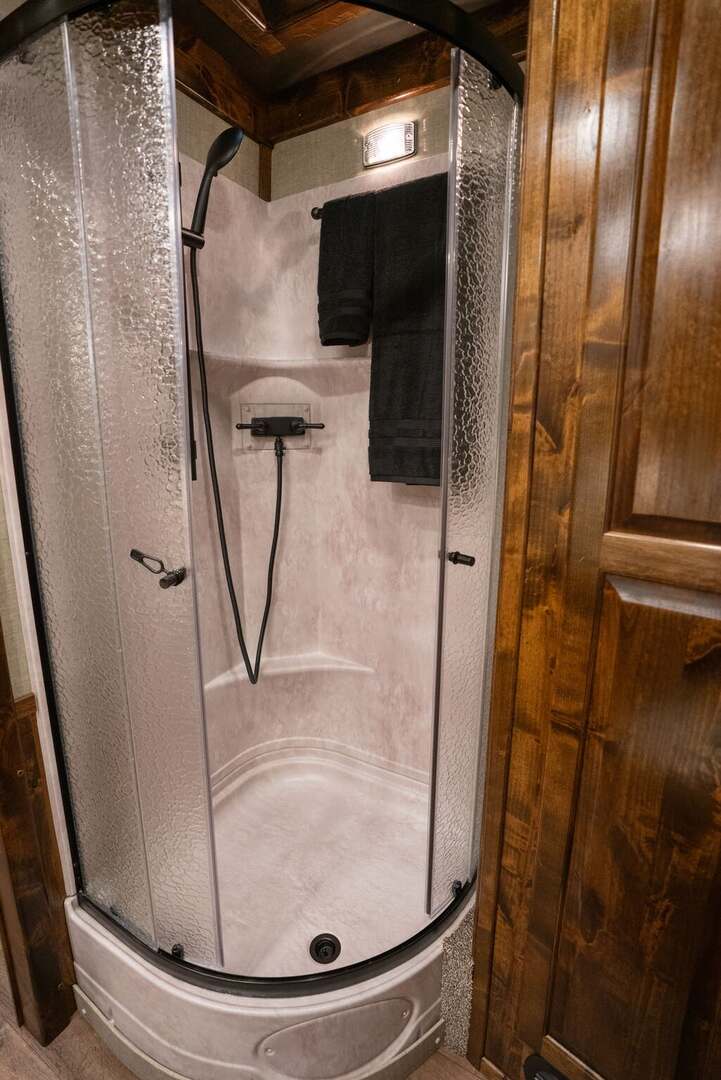

32” Radius Shower with skylight

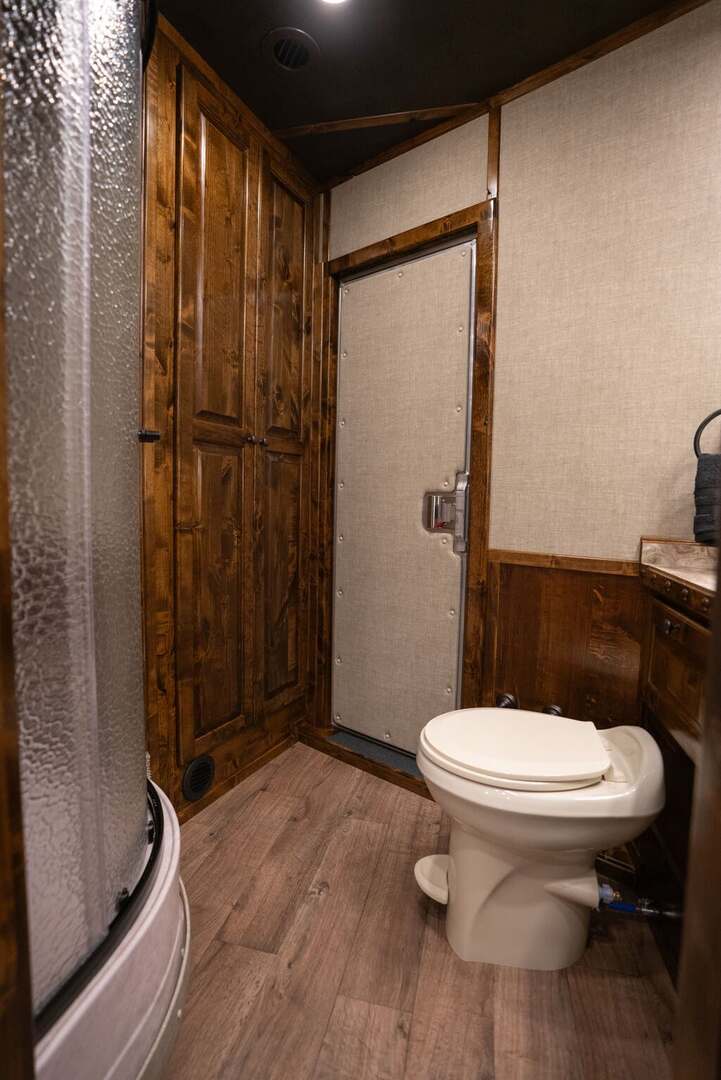

Porcelain toilet
Power Vent in ceiling of bathroom and living area by Maxfan
24” Walk through door in bulkhead wall

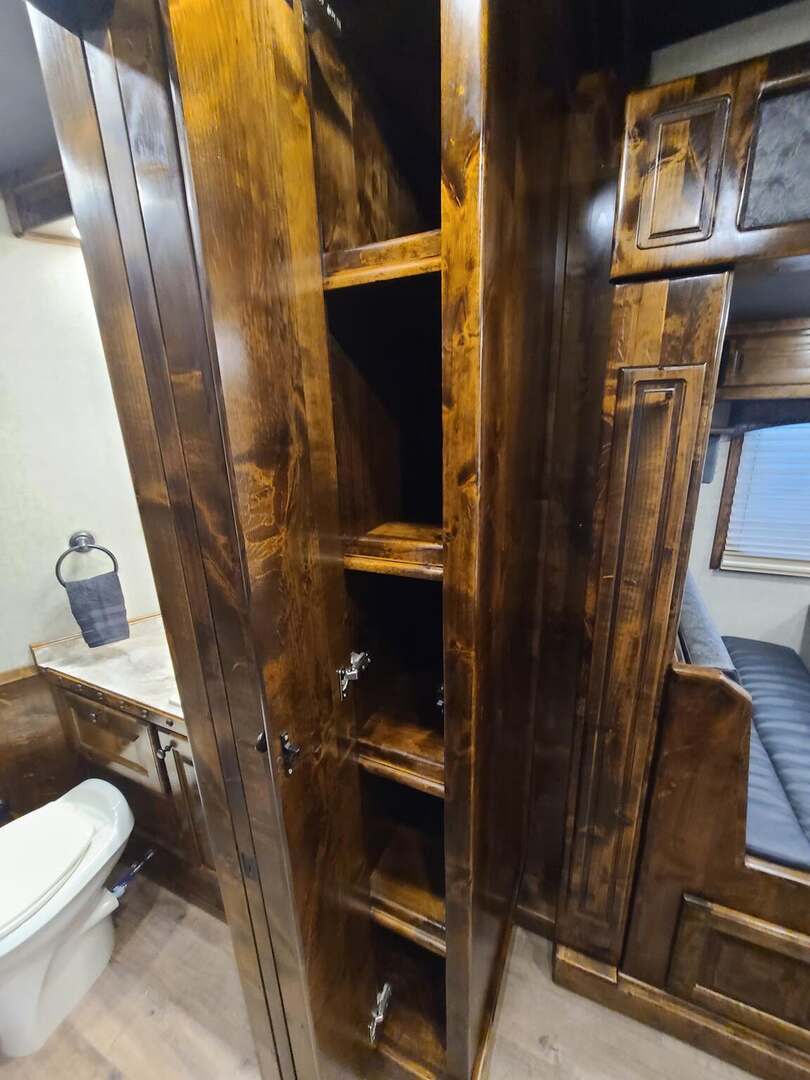

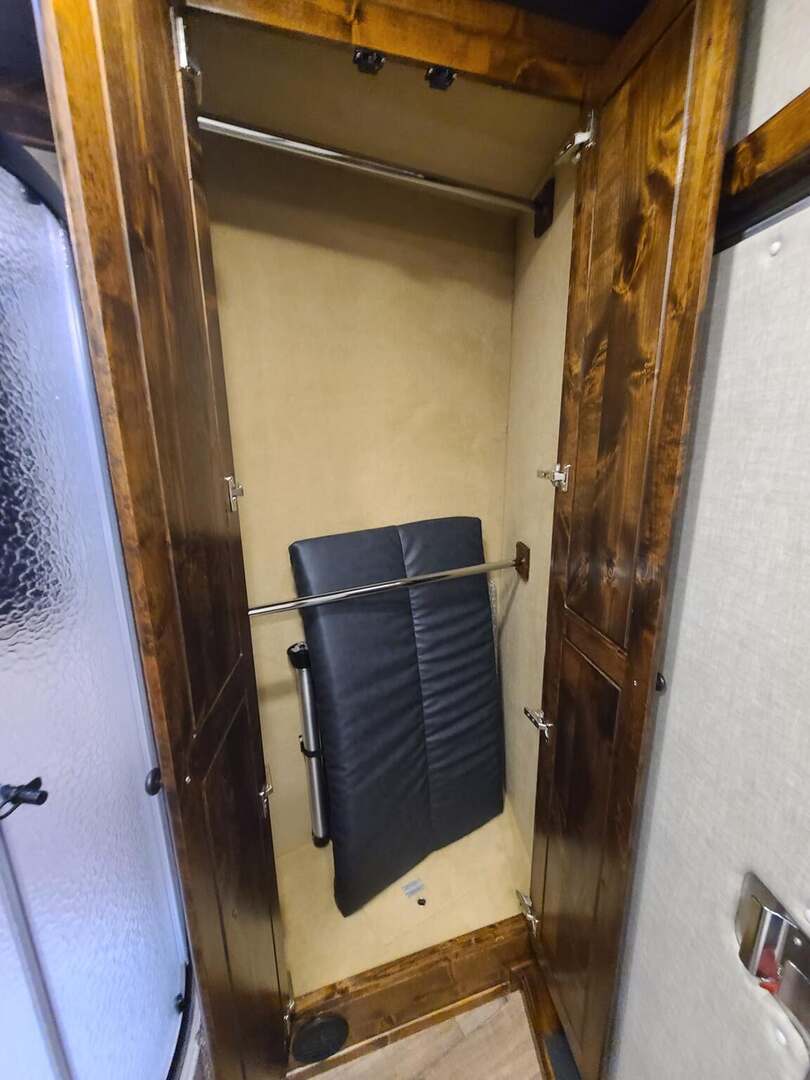

Large 30” hanging closet in bathroom

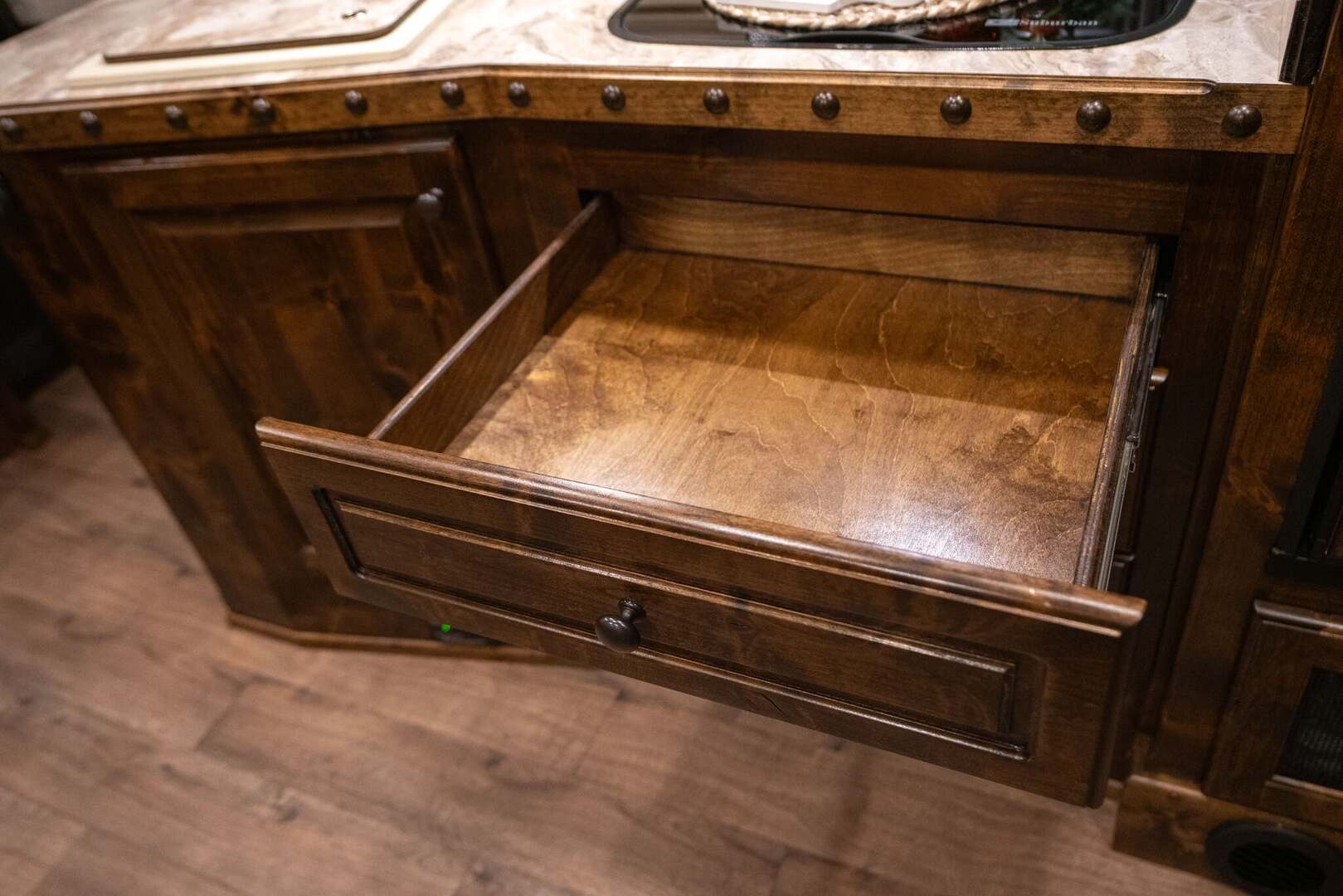

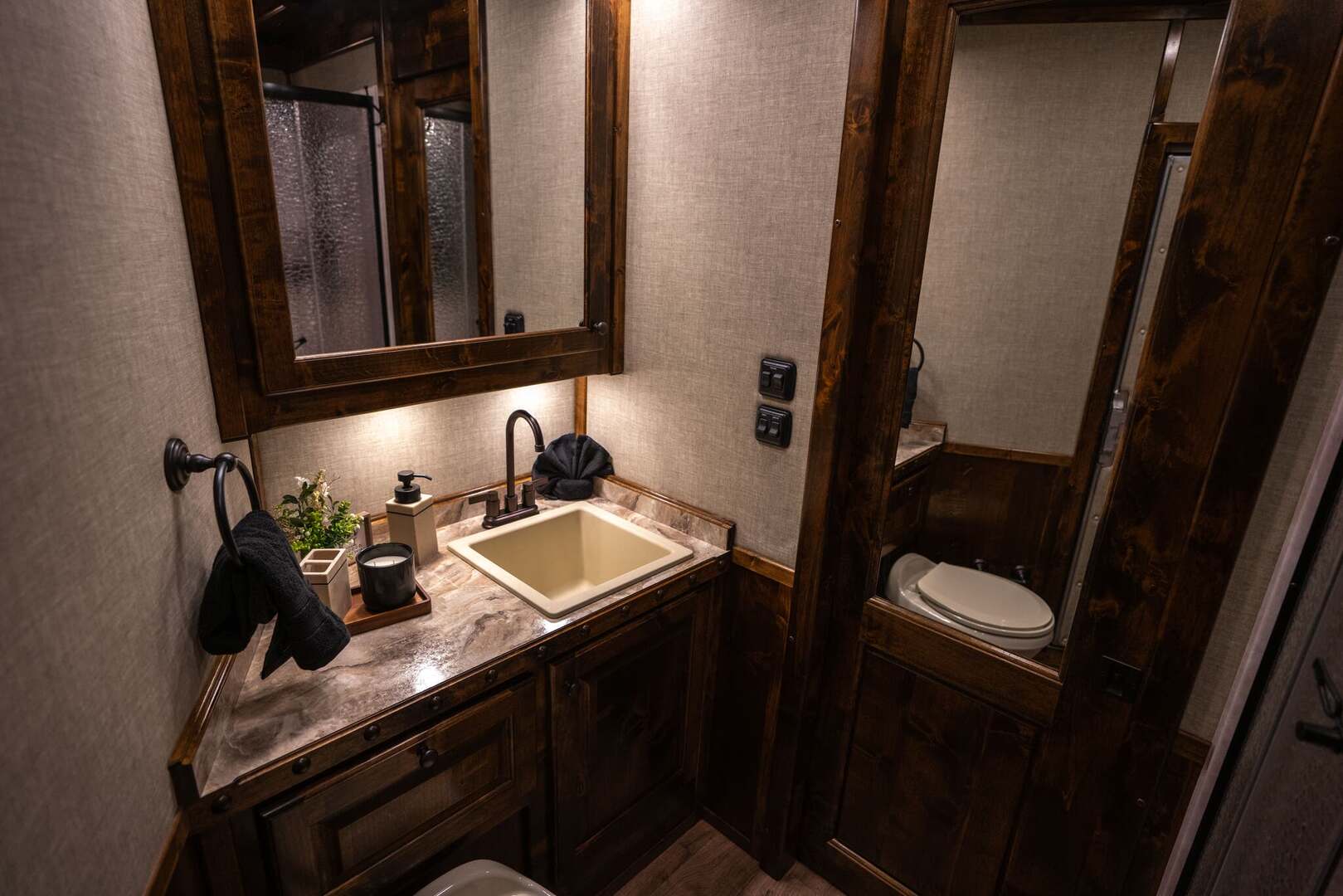

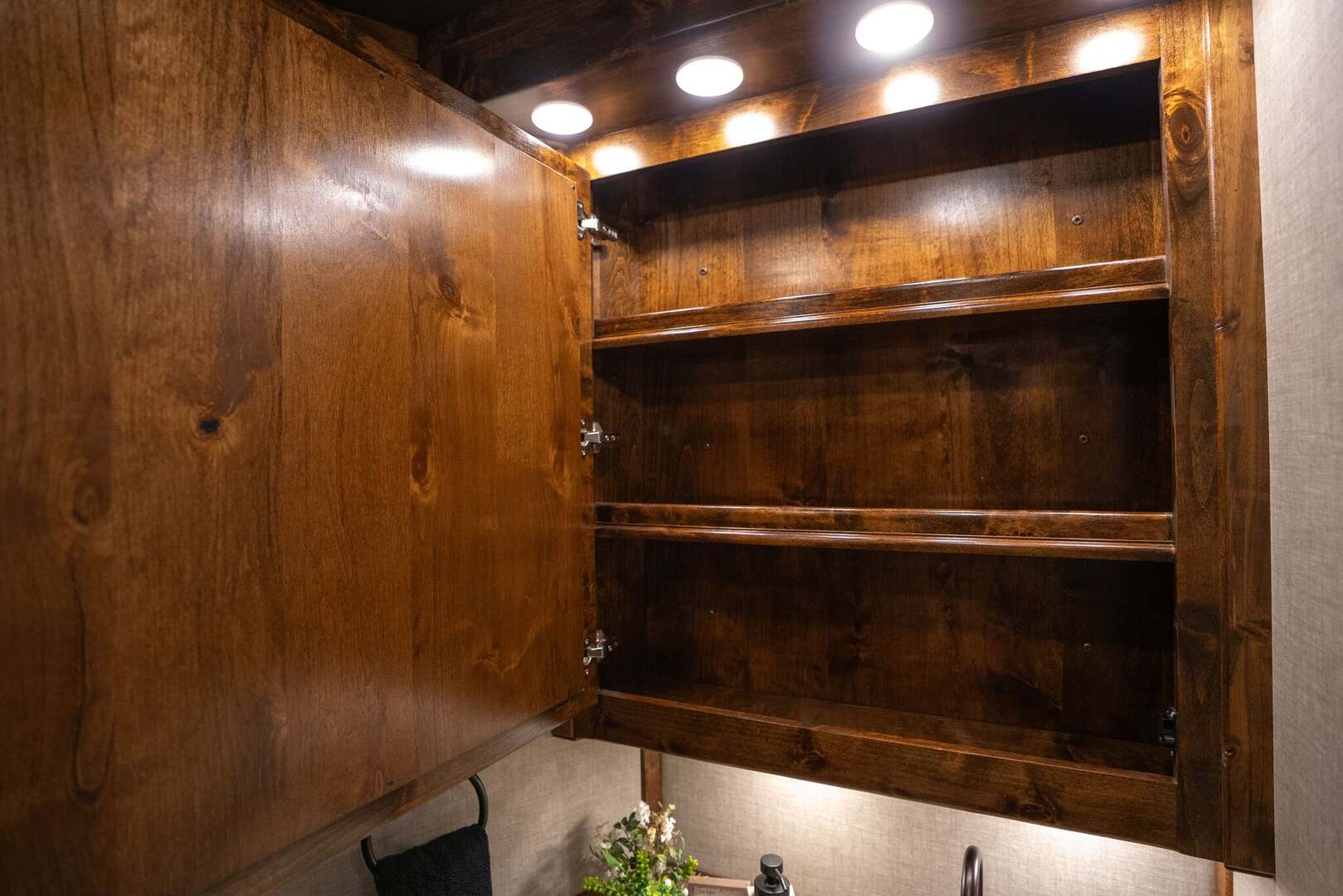

Additional cabinet space and drawers in bathroom for storage
Safety systems: LP detector, Carbon monoxide detector, and fire extinguisher
21’ Power awning and exterior speakers
Black and gray tanks with monitor system in LQ (35 gallons each)
5500 Onan gasoline Generator in enclosed compartment on roof w/ remote start in living quarters
